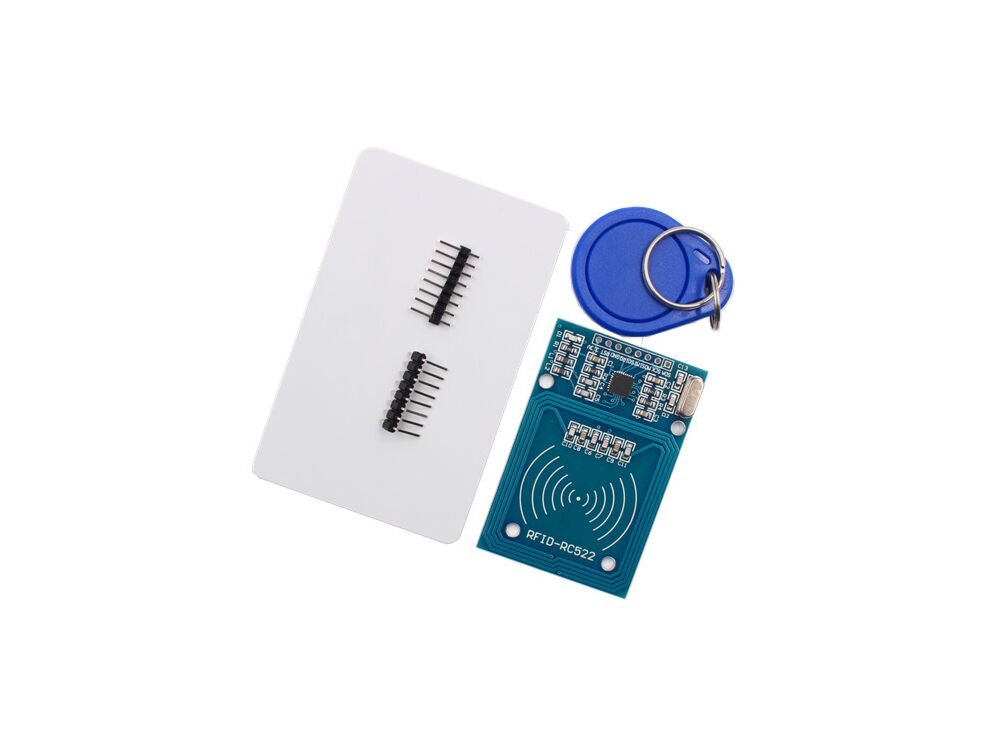

RC522 RFID Reader with Cards Kit- 13.56MHz

Availability: In stock

This RC522 RFID Kit includes a 13.56MHz RF reader module that uses an RC522 IC and two S50 RFID cards to help you learn and add the 13.56 MHz RF transition to your project. The MF RC522 is a highly integrated transmission module for contactless communication at 13.56 MHz. RC522 supports ISO 14443A/MIFARE mode.

The module uses SPI to communicate with microcontrollers. The open-hardware community already has a lot of projects exploiting the RC522 – RFID Communication, using Arduino.


  • Operating Current: 13-26mA/DC 3.3V
  • Idle Current: 10-13mA/DC 3.3V
  • Sleep Current: <80uA
  • Peak Current: <30mA
  • Operating Frequency: 13.56MHz
  • Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, Mifare Pro, MIFARE DESFire
  • Environmental Operating Temperature: -20-80 degrees Celsius
  • Environmental Storage Temperature: -40-85 degrees Celsius
  • Relative humidity: relative humidity 5% -95%
  • Reader Distance: ≥50mm/1.95"(Mifare 1)
  • Module Size: 40mm×60mm/1.57*2.34"
  • Module interfaces SPI Parameter
  • Data transfer rate: maximum 10Mbit/s
  • Package List:

  • 1 x RFID-RC522 Module
  • 1 x Standard S50 Blank Card
  • 1 x S50 special-shaped card (as shown by the keyring shape)
  • 1 x straight Pin
  • 1 x Curved Pin
  • Documents:

  • Arduino Library
  • MFRC522 Datasheet
  • MFRC522_ANT
  • Mifare S50
