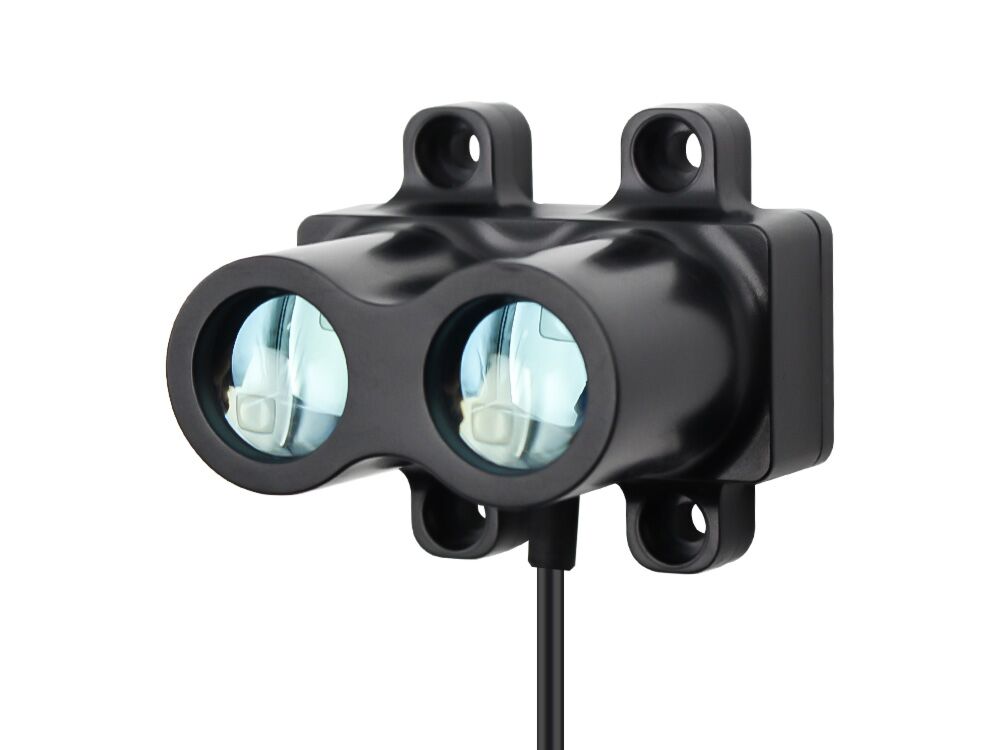

Single-point TOF Laser Ranging Sensor

The innovative pulse TOF principle enables this sensor measuring distance to be realised at 20 meters. This ensures that the accuracy of the measurement remains consistent regardless of distance. The accuracy is controlled at +/-5 cm, with measurement fluctuations of <3 cm. This approach ensures the continued stability of the distance measurement and accurate measurement , which made this sensor suitable for use in a variety of scenarios, Robot obstacle avoidance, intelligent transportation, car collision avoidance, security monitoring, material level meter etc...

Features:

• - Range：20M@90%/7M@10%
• - Measurement of blind spot ：5cm
• - Distance resolution：1cm
• - Proximity accuracy:+/-3cm
• - Measurement frequency:1~2000Hz
• - Resistance to ambient light:100Klux

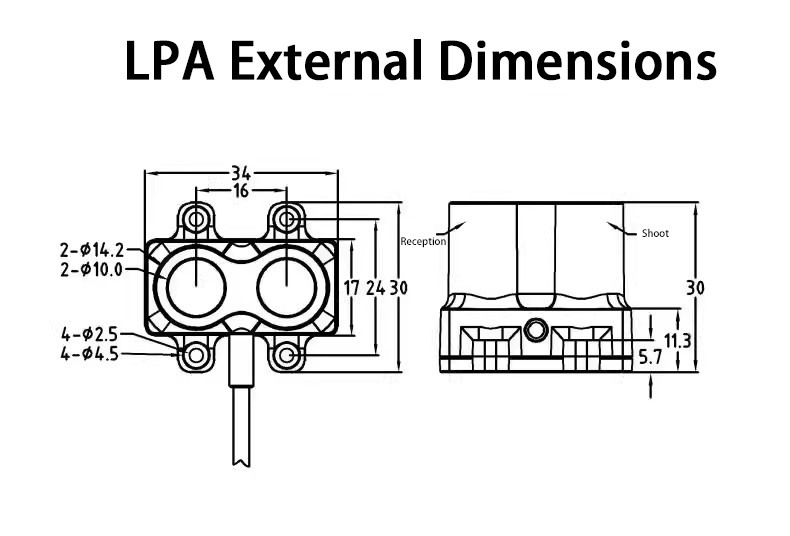

• - Dimension:30*30*34mm
• - Weight:20g
• - wire length:35cm
• - Laser beam divergence angle:34mrad
• - Receiving field of view:47mrad
• - Laser beam wavelength:850nm
• - laser level:CLASS I
• - Protection level:IP65
• - Operating Temperature:-20℃-70℃
• - Supply Voltage：5V
• - Maximum Power Consumption:<160mW
• - communications interface:LVTTL/TTL
• - Anti-reverse connection solution:voltage regulator
• - communications connector:XH-4P Terminal/Tube Terminals

Package List:

• - 1x Infrared single-point laser ranging sensor
