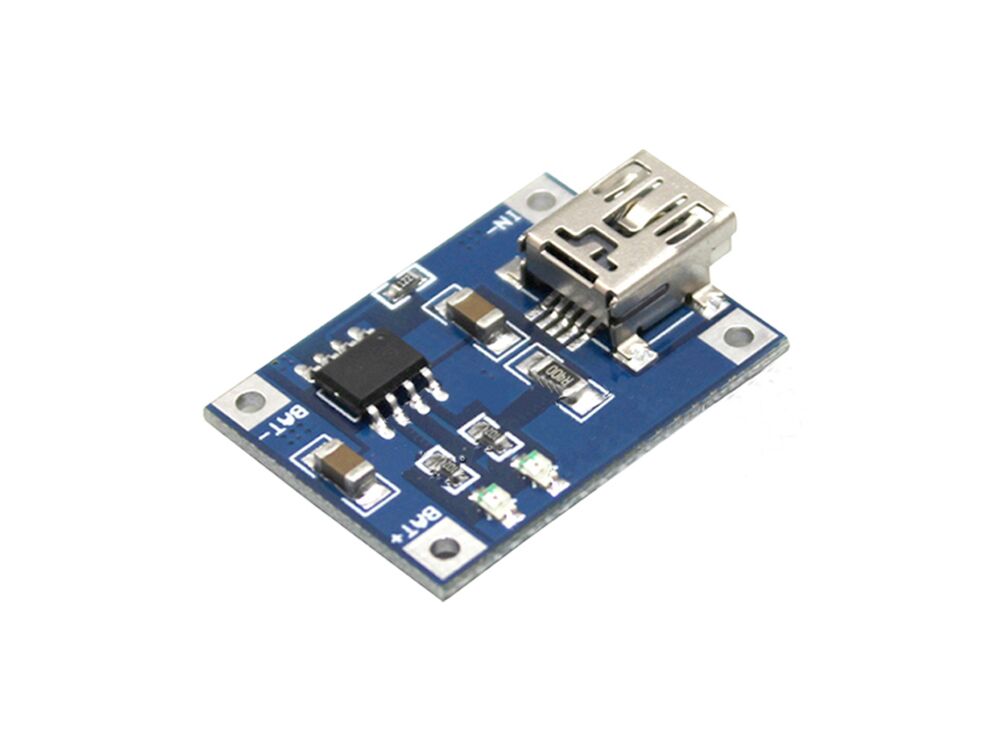

TP4056 Lipo Charger

TP4056 Lipo Charger

This module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. With Mini-USB onboard connector, you can directly connect to the computer USB port for battery charging. If USB is not available you can use an external source voltage at IN+/IN- pads Great for DIY projects.

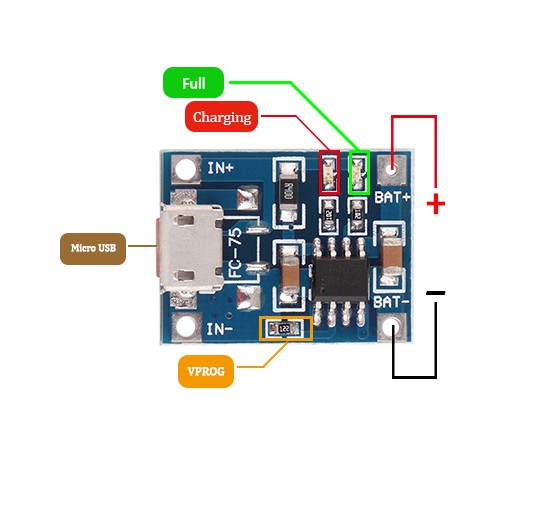

TP4056-Lipo-Charger
Besides, the charging current can be adjusted by changing the on-board “VPROG” resistors:
RPROG (k)      IBAT (mA)
30                    50
20                    70
10                    130
5                      250
4                      300
3                      400
2                      580
1.66                 690
1.5                   780
1.33                 900
1.2                   1000 (default Mounted on PCB)

Features:

  • Chipset: TP4056
  • Input voltage: 4.5V~5.5V
  • Fully charged voltage: 4.2V
  • Charging current: 1A adjustable
  • Working temperature: -10℃ ~ 85℃
  • Charging method: Linear charging 1%
  • Charging precision: 1.5%
  • Charging indicator: Red light charging, green light fully charged
  • Interface: Mini USB
  • Package List:

  • 1 x TP4056 Lipo Charger
  • Documents:

  • Datasheet
  • Reviews
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 16518
    • Product Code: MPC4056TP
    • Availability: In Stock
    • $0.15
    This product has a minimum quantity of 51
