Triple Axis Accelerometer- MMA7361

Triple Axis Accelerometer- MMA7361

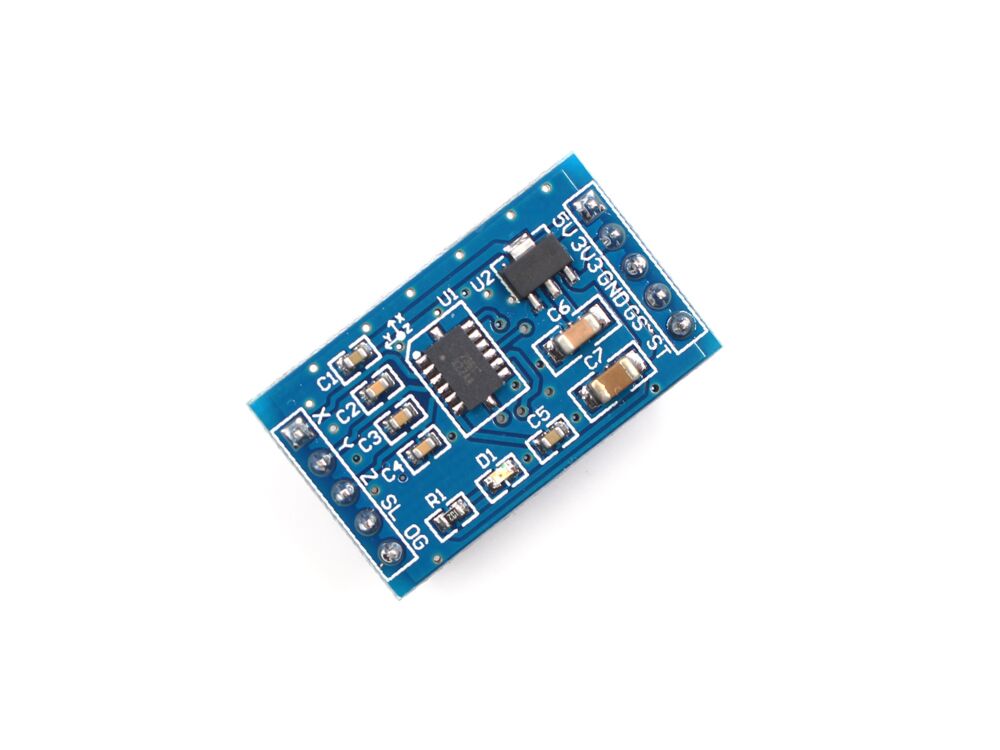

This is a breakout board for Freescale’s MMA7361L three-axis analog MEMS accelerometer. The sensor requires a very low amount of power and has a g-select input that switches the accelerometer between ±1.5g and ±6g measurement ranges. Other features include a sleep mode, signal conditioning, a 1-pole low pass filter, temperature compensation, self-test, and 0g-detect which detects linear freefall. Zero-g offset and sensitivity are factory set and require no external devices.

Features:

  • Two selectable measuring ranges (±1.5 g, ±6 g)
  • Breadboard friendly - 0.1" pitch header
  • Low current consumption: 400 µA
  • Sleep mode: 3 µA
  • Low voltage operation: 3.3 V - 5 V
  • High sensitivity (800 mV/g at 1.5 g)
  • Fast turn-on time (0.5 ms enable response time)
  • Self-test for freefall detect diagnosis
  • 0g-Detect for freefall protection
  • Signal conditioning with low pass filter
  • High sensitivity (800 mV/g at 1.5 g)
  • Package List:

  • 1 x Triple Axis Accelerometer- MMA7361
  • Documents:

  • Schematic
  • Arduino library
