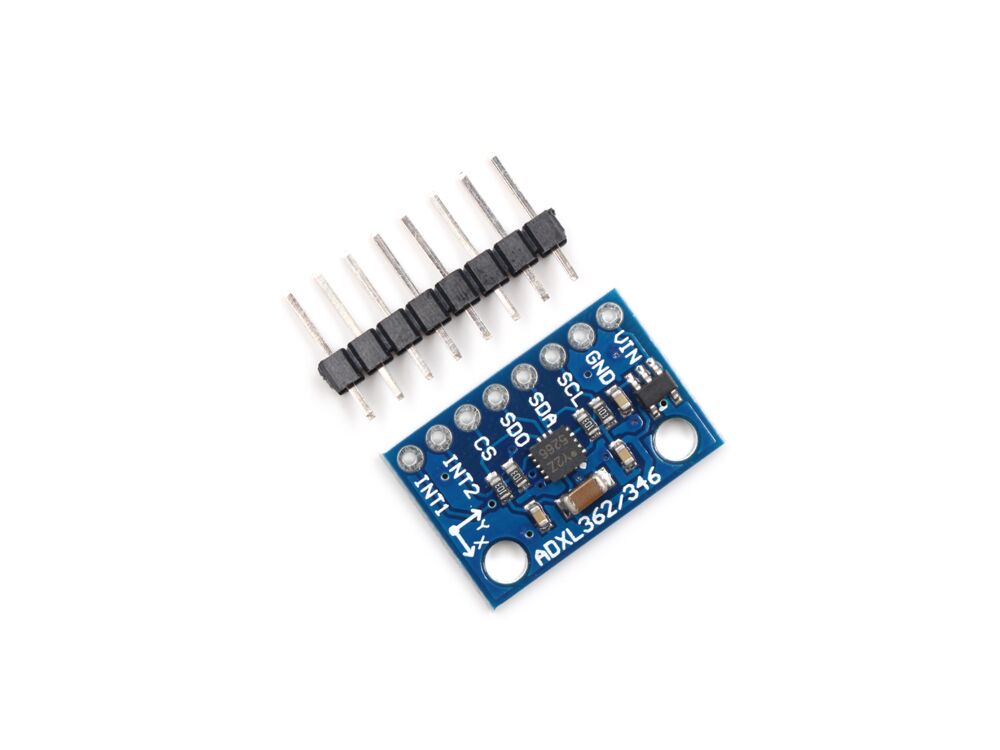

3-Axis Digital Accelerometer- ADXL346

3-Axis Digital Accelerometer- ADXL346

The ADXL346 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2 C digital interface.

The ADXL346 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables the measurement of inclination changes of less than 1.0°.

Features:

  • Working voltage: 3.3-5V
  • SPI and I2C interfaces
  • Free-fall detection
  • Package List:

  • 1 x 3-Axis Digital Accelerometer- ADXL346
  • Documents:

  • Schematic
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 8558
    • Product Code: MSM346ADX
    • Availability: In Stock
    • $3.50
    • 21 or more $2.50
