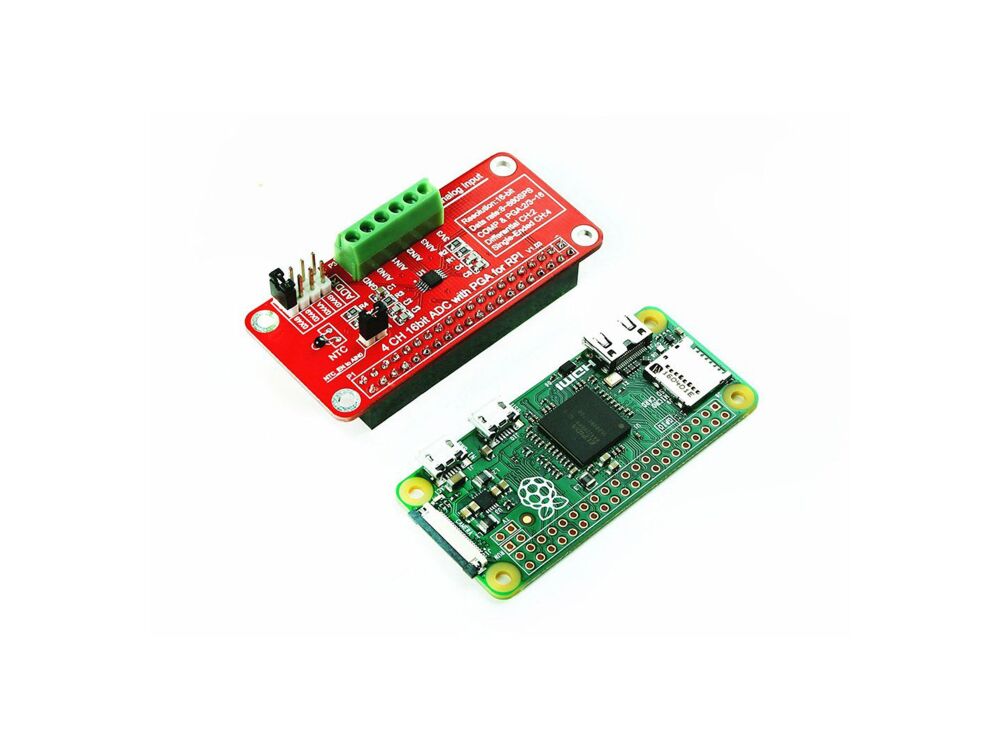

4 Channel A/D Module for Raspberry Pi 3

4 Channel A/D Module for Raspberry Pi 3

The Raspberry Pi does not have the analog reading ability, which limits many of usage& application. This A/D module provides the ability to read analog data for Raspberry Pi. The ADS1115 is analog-to-digital converters (ADCs) with 16 bits, it converts the analog data to digital and transferred them to Raspberry Pi via I2C Bus. it operates from a single power supply at 3.3V. with this module, your Raspberry Pi can work with analog sensors such as a joystick, NTC, temperature, dust sensor, etc.

How to wire up?
Just Plug into GPIO with this module.
NOTE: Please beware of the No.1 Pin is fit for your GPIO No.1 Pin.

Features:

  • Size: 65.0mm x 30.0mm x 18.0mm
  • Analog Input Voltage: GND to VDD
  • PROGRAMMABLE DATA RATE: 8SPS to 860SPS
  • INTERNAL LOW-DRIFT: VOLTAGE REFERENCE
  • INTERNAL PGA: Available
  • Resolution 16-bit
  • I2C™ INTERFACE: Pin-Selectable Addresses
  • Channels Number: 4 SINGLE-ENDED OR 2 DIFFERENTIAL INPUTS
  • PROGRAMMABLE COMPARATOR: 2/3 ~ 16
  • INTERNAL NTC Support: Available
  • Package List:

  • 1 x ADS1115 Module (Not include the Raspberry PI)
  • Documents:

  • Usage
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 11802
    • Product Code: ORS1115AD
    • Availability: In Stock
    • $6.50
    • 6 or more $4.50
