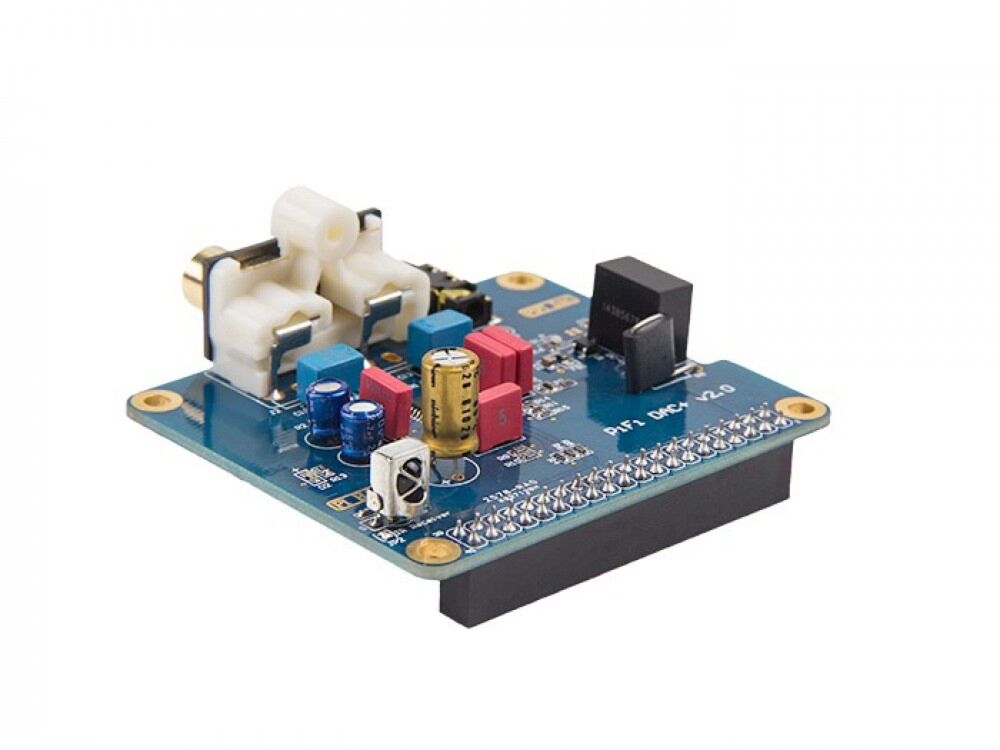

Raspberry Pi B+/2B HIFI DAC

Raspberry Pi B+/2B HIFI DAC

HIFI DAC+ Digital Audio Card Pinboard designed For Raspberry PI 2 Model B +, adopt high-end DAC chip PCM5122 of TI Company. You can set up an internet HIFI player by Volumio or xbmc system.

Features:

  • Using PCM5122 DAC chip from Burr-Brown Corporation, with 32-bit, 384kHz PCM interface, I2S data format.
  • Dual Gold-plated RCA jacks, keep fantastic conductive properties!
  • Gold-plated 3.5mm line out jack (Not for your earphones, it's for audio power amplifiers only!)
  • Special designed power source system by U-geek, isolating the DAC power source part from the Raspberry Pi power source system, keeps the current noise away, gives you crystal clear sound.
  • High-quality U-geek Designed PCB - check out our other products and you'll know what I mean!
  • Please check out the following resisters and capacitors that we used on this DAC+ -
  • Sampling Frequency: 384KHz
  • Resolution (Bits): 16-32
  • Digital Audio Interface: I2S
  • SNR: 120dB
  • THD: -93dB
  • Dynamic range: 112dB
  • Supports Raspberry Pi B+, Raspberry Pi 2 Model B
  • Package List:

  • 1 x Raspberry Pi B+/2B HIFI DAC
  • Documents:

  • HIFI DAC+ Digi+ in Volumio
  • HIFI DAC+ Digi+ in Koli/OpenElec
  • HIFI DAC+ Digi+ in RuneAudio
  • PiFi_User_Guide
  • Volumio
