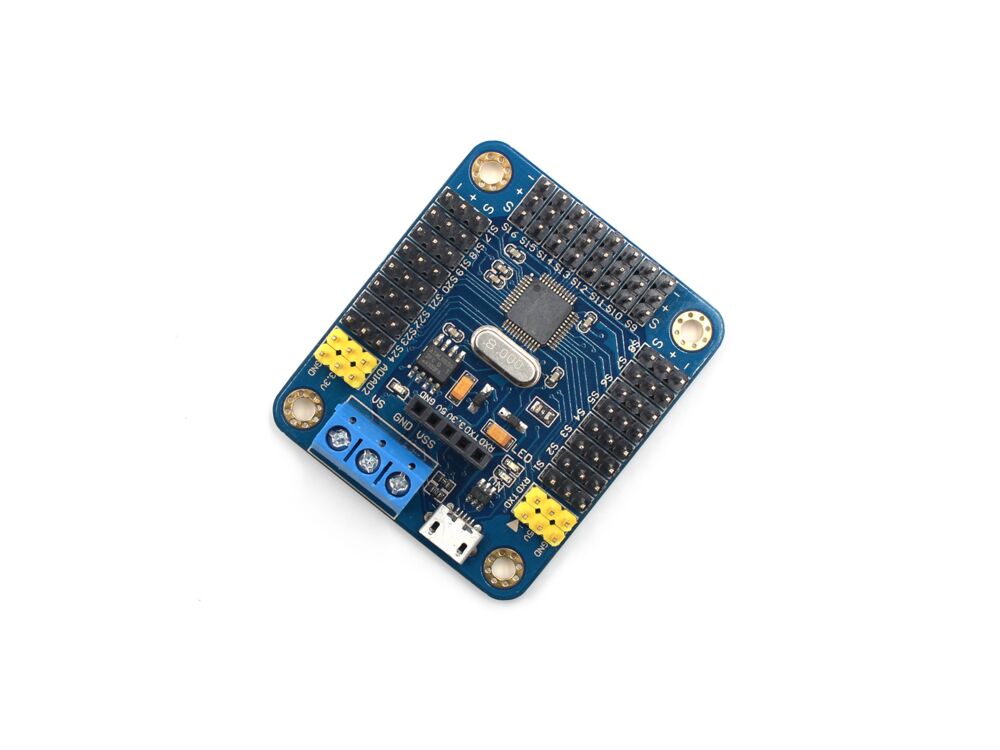

Arduino 16-Channel Servo Controller

Arduino 16-Channel Servo Controller

This is a 16 channel micro USB servo controller, ideal for 6 legged robots or similar. Which uses a 32-bit processor, fast response, and stable operation. The USB interface can be directly interfaced with a pc. Self-detect Baud-rate (9600, 19200, 38400, 57600, 115200, 128000).

Example:
Serial.begin(115200); // Set baud-rate to be 115200
Serial.print("#1P1200T1000\r\n"¬); // Turn channel 1 on at 1200 position for 1000ms.
Serial.print("#1P1200T1000#2P1600T1000\r\n"¬); // Turn channel 1 and 2 simultaneously

Features:

  • 32-bit CPU
  • Power of servo and control board are separate Chip
  • Power Supply: 4.5V ~ 5.5V (USB powered)
  • Servo Power Supply: Generally DC 5V (base on the servo you use)
  • Channel: 16 (servo speed adjustable)
  • Communication Input: USB or Serial Port(TTL)
  • Signal Output: PWM (accuracy 1us)
  • Servo Motor Resolution: 1us- 0.045 degrees
  • Baud Rate: 9600- 19200- 28400- 57600- 115200- 128000 (recognized automatically)
  • Package List:

  • 1 x Arduino 16-Channel Servo Controller
  • Documents:

  • User manual
