ESP32 UWB DW3000(Ultra Wideband)

ESP32 UWB DW3000(Ultra Wideband)

ESP32 UWB Pro-1

ESP32 UWB Pro

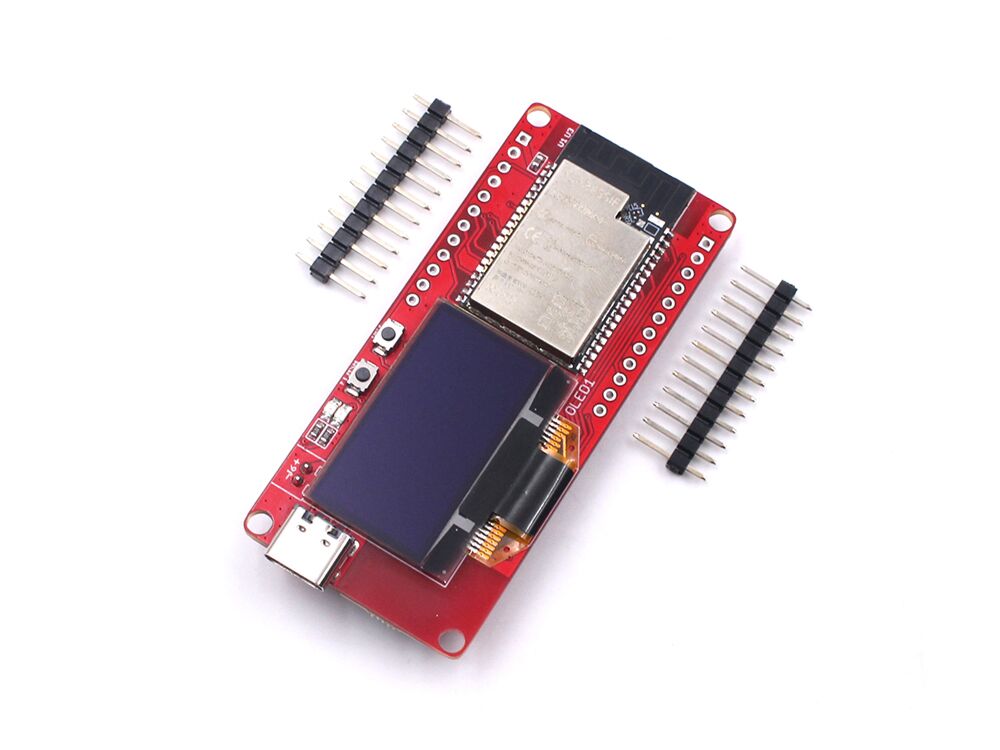

ESP32 UWB Pro with Display

$54.80
Availability: In stock
SKU
ESP32HPDP

Ultra-wideband (UWB) is a short-range, wireless communication protocol that operates through radio waves, enables secure reliable ranging and precision sensing, creating a new dimension of spatial context for wireless devices.

This new ESP32 UWB pro with display is the updated version of ESP32 UWB Pro, with the following new spec:
● On-board OLED, 1.3” 128*64, so the distance results can be directly displayed;
● Lipo battery charger& connector, so this module can work separately with batteries;
● Update UWB position, so the module can be directly installed into a case;

ESP32 UWB Comparison:

/ UWB Basic UWB Pro UWB Pro with Display UWB DW3000
CPU ESP32-WROOM/WROVER ESP32-WROVER ESP32-WROVER ESP32-WROOM/WROVER
Core UWB DW1000 DW1000 DW1000 DW3000
Screen N N Y N
Measuring distance(m) 45 200 200 20
Battery Socket N N Y N
UWB Channel 2/5 2/5 2/5 5/9
Apple Interoperable N N N Y
Suitable for Normal Testing Long distance needed Long distance needed Product development
Prices($) $39.80/$41.80 $51.84 $54.80 $43.80/ $45.80

Features:

  • Decawave DW1000 for precision tracking
  • ESP32 for fast & powerful applications
  • Support Wifi, Bluetooth
  • Arduino compatible& demos
  • Micro-USB connector
  • Board USB supply voltage range: 4.8~5.5V, 5.0V Typical
  • On board 1.3 inch OLED display
  • Battery Charger/ Connector

  • *** Note that for open hardware, Makerfabs provide tested hardware/related files and basic usage demos.

    For UWB(and UWB Pro/Pro with Display), Makerfabs’ demo usage based on mf-DW1000 lib:https://github.com/Makerfabs/Makerfabs-ESP32-UWB


    For UWB DW3000, the lib:https://github.com/Makerfabs/Makerfabs-ESP32-UWB-DW3000


    But very note that the libs are mainly for demo, do not support time-multiplexing. If customer will use them with multiple anchors/tags, please ensure you have related knowledge for this coding,Makerfabs can not provide tech support on this.


    While Makerfabs MaUWB support 8 anchors + 64 tags with onboard STM32 firmware support. For users not familiar with UWB tech, We suggest the MaUWB to easy project implement.


    Reference:

  • Wiki
  • Hardware& Software
  • ESP32 Wrover Datasheet
  • ESP32 UWB Indoor Positioning Test
  • ESP32 UWB Antenna Delay Calibrating
