MaESP ESP32 OLED

$12.99
Availability: In stock
SKU
MAKT32

Based on those MaESP solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Python is one of the most widely used, simple, and easy-to-learn programming languages around. MicroPython is a lean implementation of the Python 3 programming language that has been pared down to run efficiently on microcontrollers.

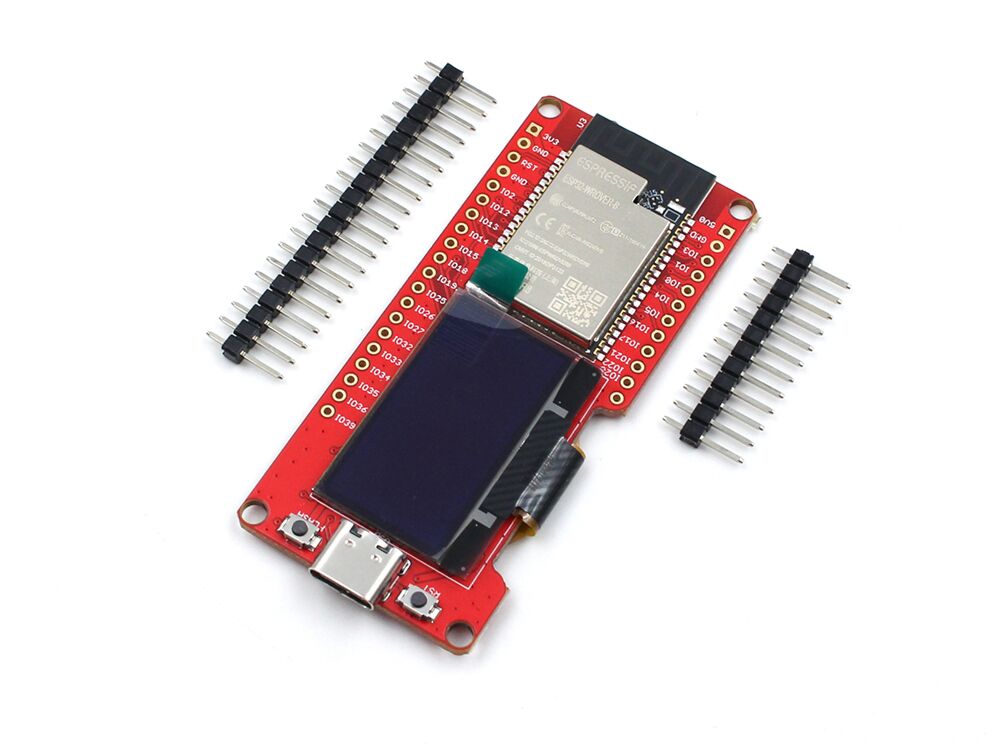

MaESP ESP32 OLED is a powerful, generic Wifi+ BLE MCU module targeted to MicroPython learners & developers. It is truly "breadboard compatible", with the very detailed pins explanation, it is easy to learn& use. The MaESP ESP32 OLED has 2 optional for users: WROOM(NO PSRAM) and WROVER(8MB PSRAM).

The MaESP ESP32 OLED is programmed with MicroPython by default, users can begin the MicroPython developing as getting them on hand. There is also the Makerfabs MakePython ESP8266.

Specifications:

MakePython-ESP32-Specification

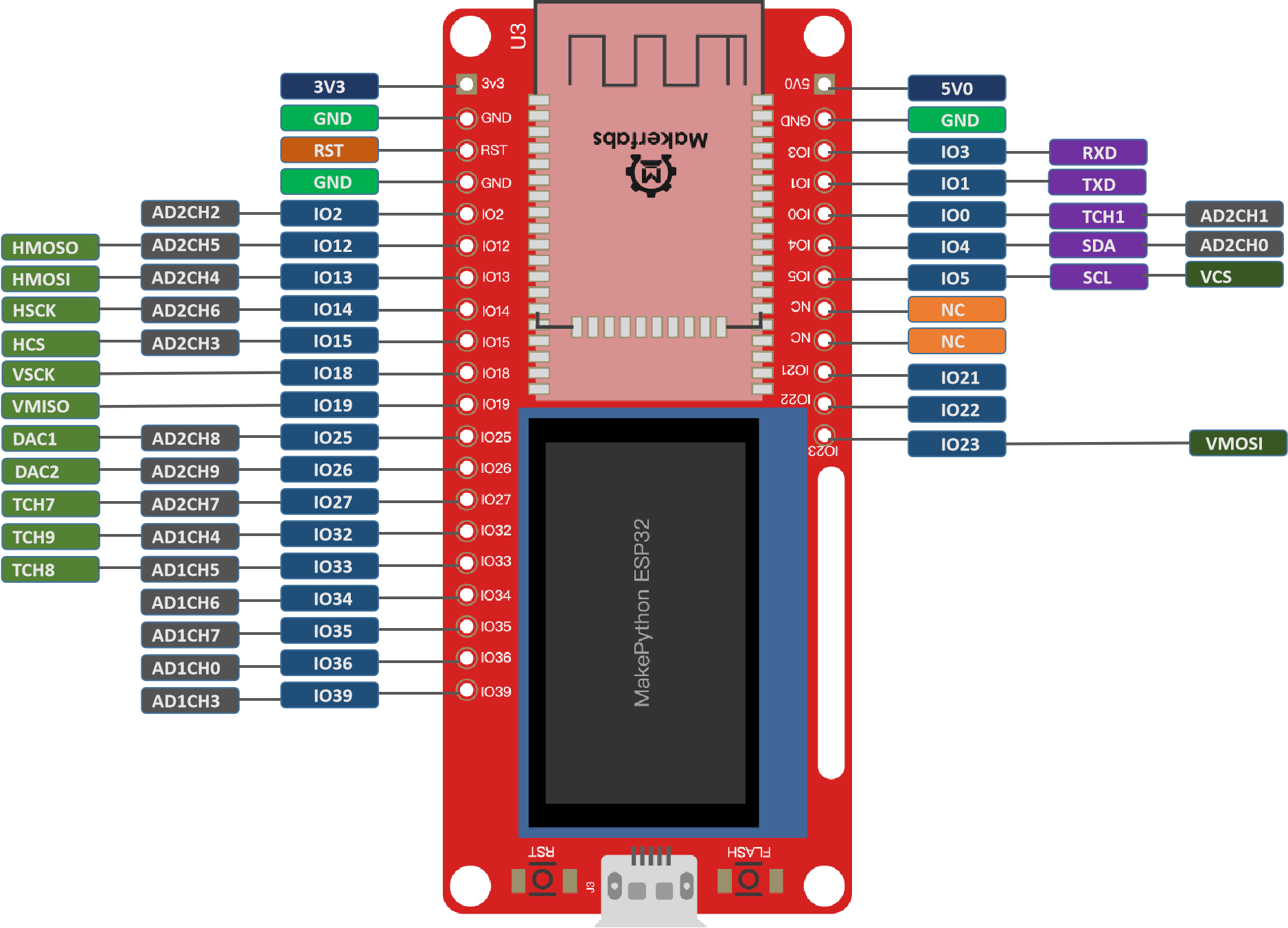

MakePython-ESP32-Pin-Definitions-2

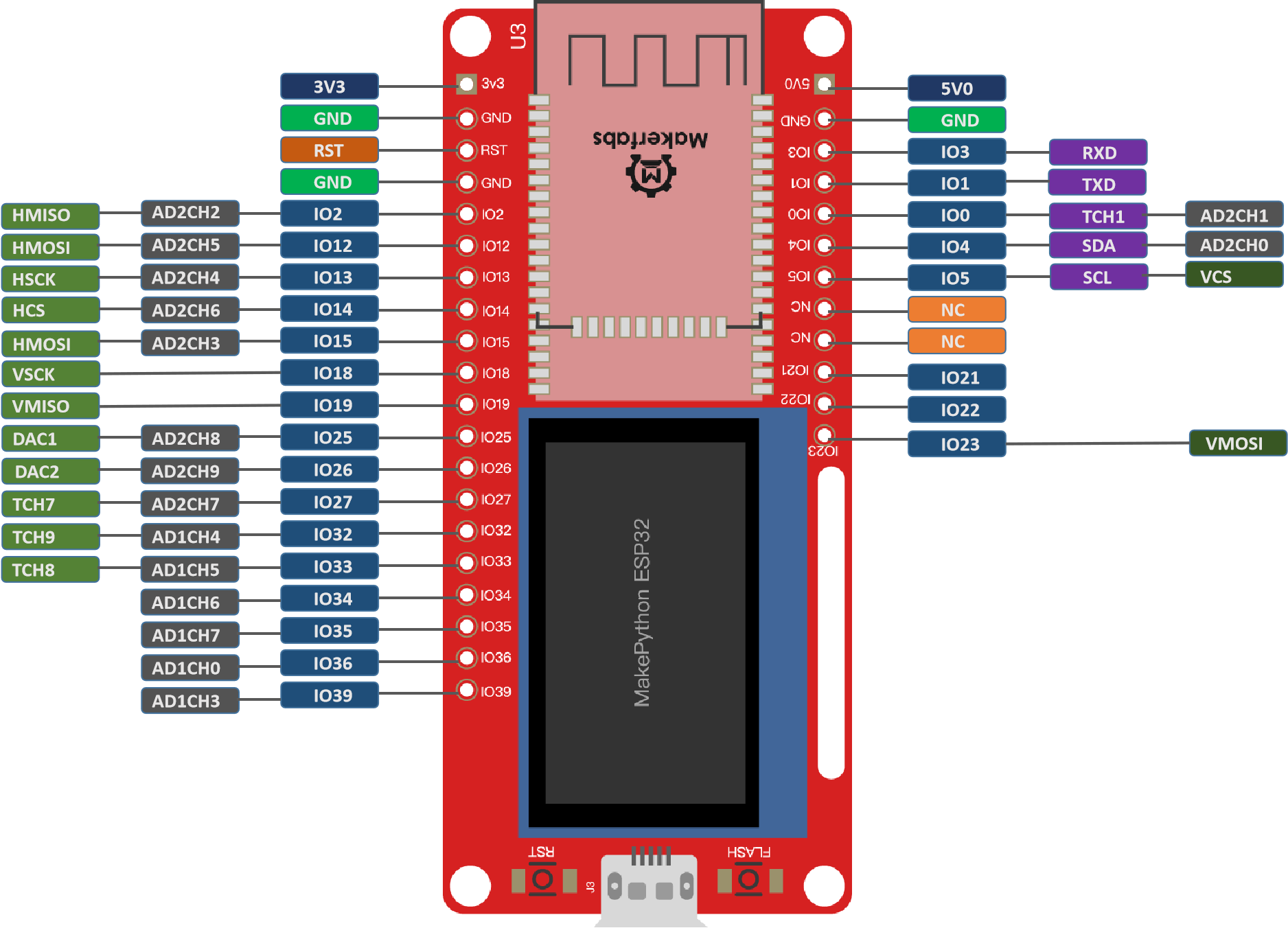

Pin Definitions:

MakePython-ESP32-Pin-Definitions

Notice:
1. IO34, IO35, IO36, IO39 input only.
2. GPIO12 is internally pulled high in the module and is not recommended for use as a touch pin.
3. IO4 Connected to OLED’s SDA and IO5 Connected to OLED’s SCL on the board.

Booting Mode:

MakePython-ESP32-Booting-Mode

Physical Dimensions:

MakePython-ESP32-Physical-Dimensions

Download:

  • Schematic
  • GitHub
  • ESP32 Wroom Datasheet
  • ESP32 Wrover Datasheet
  • Wiki
  • Comparison: ESP32 WROOM VS WROVER
