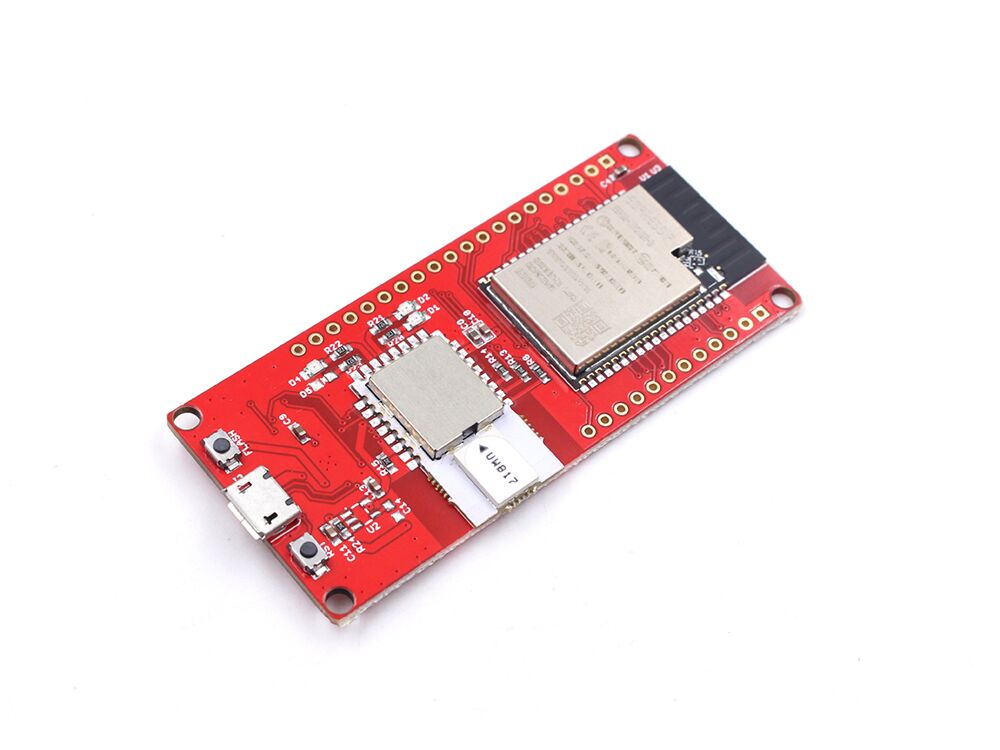

ESP32 UWB DW3000(Ultra Wideband)

$43.80
Availability: In stock
SKU
ESP32UWB3000
ESP32 UWB DW3000(Ultra Wideband) is available to buy in increments of 1

Ultra-wideband (UWB) is a short-range, wireless communication protocol that operates through radio waves, enables secure reliable ranging and precision sensing, creating a new dimension of spatial context for wireless devices.

Makerfabs ESP32 UWB module, which is based on IC DecaWave DW1000, has been greatly popular and liked by many Makers. And many customers ask us for the newest DW3000 version, after long-term comparison & testing, now it's available!~

Compares to the DWM1000, the DWM3000 has advantages as below:
1. Most important: Interoperable with Apple U1 chip, that makes it possible to work with the Apple system;(But note that this is per Qorvo, the UWB IC producer, introduction of DW3000, Makerfabs now do not have related files/demos to support this.)
2. Fully aligned with FiRa™ PHY, MAC, and certification development, which makes it more suitable for further applications;
3. Much lower Power consumption, almost 1/3 of DWM1000;
4. Supports UWB channels 5 (6.5 GHz) and 9 (8 GHz), while DWM1000 does not support Channel 9;
ESP32-UWB-Module
Besides, with ESP32 WiFi connection, it can easily report its location to the remote receiver, so the receiver can monitor its latest location.

Features:

  • Decawave DW3000 for precision tracking
  • ESP32 for fast & powerful applications
  • Support WiFi, Bluetooth
  • Arduino compatible& Demos
  • Micro-USB connector
  • Board USB supply voltage range: 4.8~5.5V, 5.0V Typical

  • *** Note that for open hardware, Makerfabs provide tested hardware/related files and basic usage demos.

    For UWB(and UWB Pro/Pro with Display), Makerfabs’ demo usage based on mf-DW1000 lib:https://github.com/Makerfabs/Makerfabs-ESP32-UWB


    For UWB DW3000, the lib:https://github.com/Makerfabs/Makerfabs-ESP32-UWB-DW3000


    But very note that the libs are mainly for demo, do not support time-multiplexing. If customer will use them with multiple anchors/tags, please ensure you have related knowledge for this coding,Makerfabs can not provide tech support on this.


    While Makerfabs MaUWB support 8 anchors + 64 tags with onboard STM32 firmware support. For users not familiar with UWB tech, We suggest the MaUWB to easy project implement.


    Reference:

  • Wiki
  • Hardware& Software
  • ESP32 Wroom Datasheet
  • ESP32 Wrover Datasheet
  • DW3110 Datasheet
  • Comparison: ESP32 WROOM VS WROVER
