SenseLoRa_Industrial-grade Soil Remote Monitor V2(Humidity/ Temperature/ PH/)

LoRaWAN is good，but sometimes you do not need LoRaWAN, or it difficult/expensive to implement a LoRaWAN network, not to mention the cloud. Actually, Makerfabs think that in these applications, a simple LoRa P2P make the story easy/convenient, that is why we developed the SenseLora products.

Function：

Makerfabs SenseLoRa soil monitor detects the soil status, include soil Temperature/ Humility/ PH, and transmit the data via LoRa P2P to LoRa Receiver(can be on your room desk) , for soil instant monitor, or long-term analysis.

The monitor name/data cycle can be set with a phone, so it can be implemented in the filed easily.

This soil monitor is powered by internal lipo battery charged by solar panel, can be used at least 1 years with default setting (cycle 1 hours).

Applicable scene：

Small scale iot applications, such as soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouse, flowers and vegetables, grassland and pasture, plant cultivation, sewage treatment, fine agriculture, and other occasions.

Technical advantage：

• -  Low power consumption: Low power consumption during device communication, suitable for battery-powered applications.
• -  Long-distance communication: under the same power consumption conditions, it spreads farther than traditional wireless methods.
• -  Wide area coverage: It provide extensive coverage, not only in urban areas, but also being able to penetrate obstacles well, have deep indoor and underground coverage.

Features:

• - ESP32S3 module controller
• - Ready to use, power it on directly to start to receive soil status signal with Lora
• - Module name/signal interval settable easily by phone;
• - Arduino Compatible: You can play it with Arduino IDE
• - IP68 water-proof
• - Measuring range: -40℃~80℃，0~100% moisture
• - Measuring accuracy: ±0.5℃，±3% moisture
• - Communication distance: Lora: 3km or more;
• - 1000mAh battery, charger IC onboard
• - Solar panel 6W, ensure system works

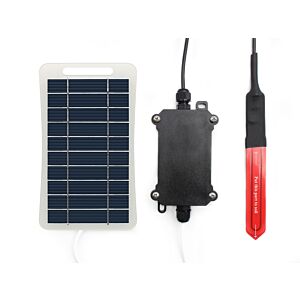

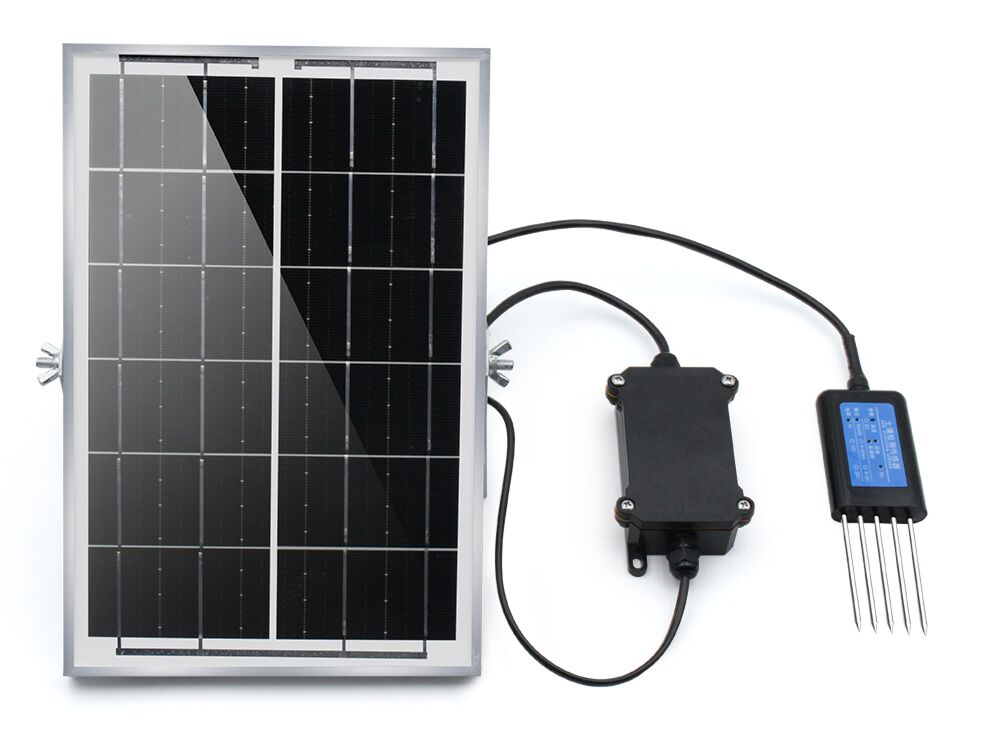

Parts List:

• - Remote Monitor Station with the case
• - Soil Sensor
• - Solar panel

Usage:

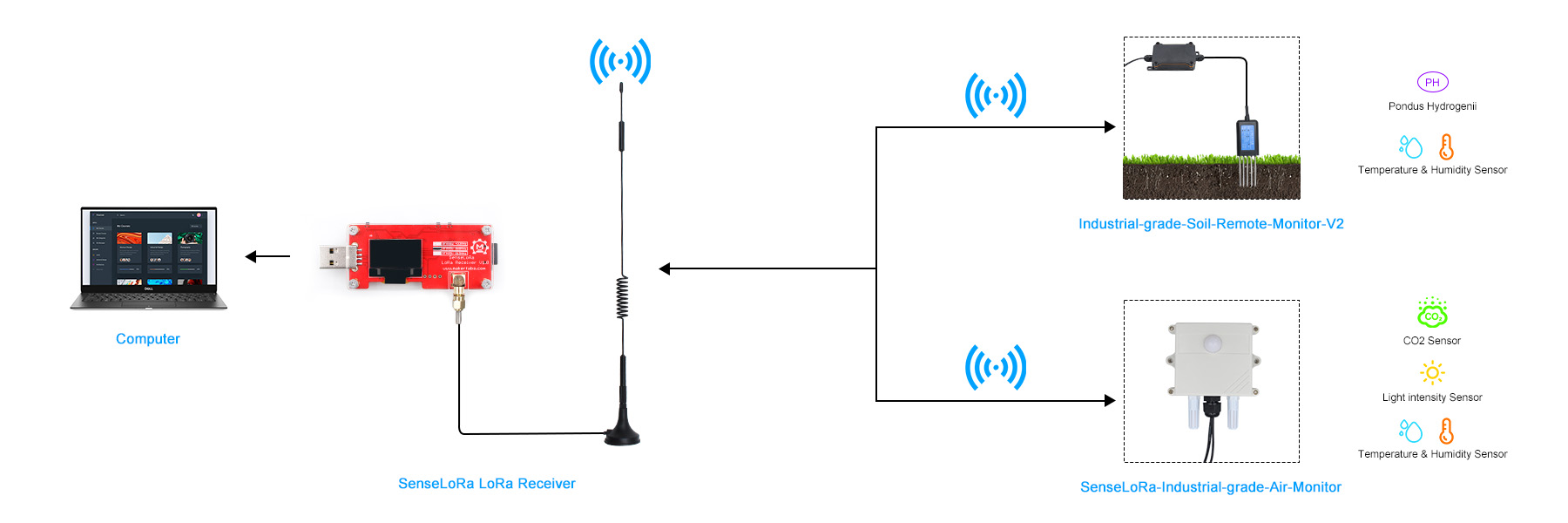

Option 1：Monitor + SenseLoRa_LoRa Receiver---Plug-n-Play.

The Lora receiver work with SenseLora modules, it receive LoRa signal around and forward to computer, so the data can be display/record/analyze on PC.

Receiver detail and features can be found in SenseLoRa_LoRa Receiver

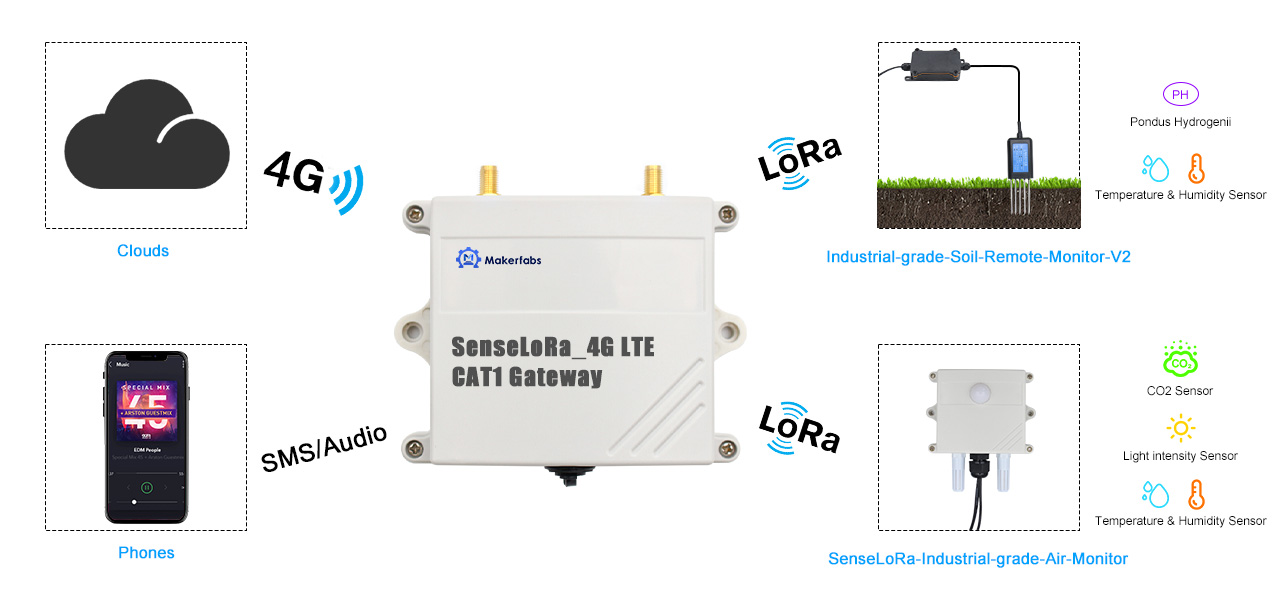

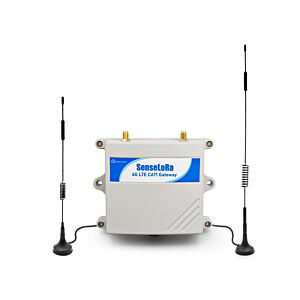

Option 2：Monitor + SenseLoRa_4G LTE CAT1 Gateway---Flexible data transmission.

The 4G LTE CAT1 Gateway work with SenseLora modules, it get the LoRa data and then transmit the data via 4G to cloud server such as TTN, or the monitors phone with SMS.

Receiver detail and features can be found in SenseLoRa_4G LTE CAT1 Gateway
