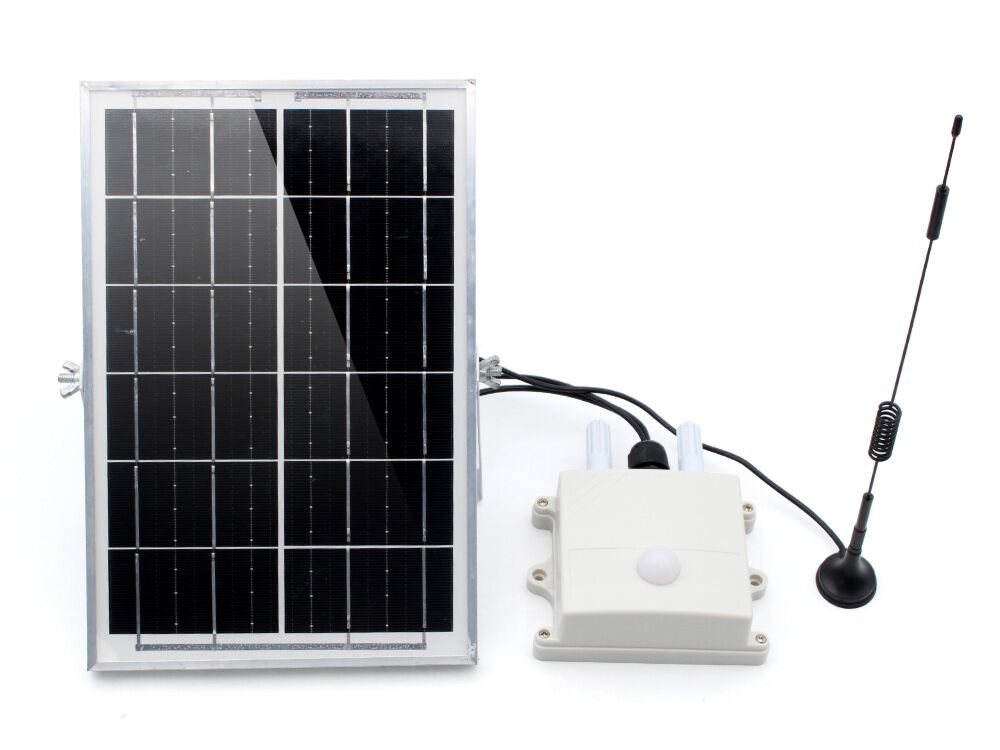

SenseLoRa_Industrial-grade Air Monitor
LoRaWAN is good, but sometimes you do not need LoRaWAN, or it difficult/expensive to implement a LoRaWAN network, not to mention the cloud. Actually, Makerfabs think that in these applications, a simple LoRa P2P make the story easy/convenient, that is why we developed the SenseLora products.
Function：
This air monitor is specially used for green house monitoring, it detects:
- - Air temperature& humility
- - CO2 concentration
- - Light intensity
The monitor name/data cycle can be set with a phone, so it can be implemented in the filed easily.
And then transmit the data via LoRa P2P to LoRa Receiver( on your room desk), so user can monitor the field status or have them recorded for long-term analyze.
This air monitor is powered by internal lipo battery charged by solar panel, can be used at least 1 years with default setting (cycle 1 hours).
Applicable Scene：
Small scale iot applications, such as Farmland air quality monitoring(real-time monitoring/precision agriculture), Crop growth environment optimization(temperature and humidity measuring/intelligent decision), Harmful gas warning(Pest and disease warning) and other occasion.
Usage:
Option 1：Monitor + SenseLoRa_LoRa Receiver---Plug-n-Play.
The Lora receiver work with SenseLora modules, it receive LoRa signal around and forward to computer, so the data can be display/record/analyze on PC.
Receiver detail and features can be found in SenseLoRa_LoRa Receiver
Option 2：Monitor + SenseLoRa_4G LTE CAT1 Gateway---Flexible data transmission.
The 4G LTE CAT1 Gateway work with SenseLora modules, it get the LoRa data and then transmit the data via 4G to cloud server such as TTN, or the monitors phone with SMS.
Receiver detail and features can be found in SenseLoRa_4G LTE CAT1 Gateway
Technical Advantage：
- - Low power consumption: Low power consumption during device communication, suitable for battery-powered applications.
- - Long-distance communication: under the same power consumption conditions, it spreads farther than traditional wireless methods.
- - Wide area coverage: It provide extensive coverage, not only in urban areas, but also being able to penetrate obstacles well, have deep indoor and underground coverage.
Features:
- - ESP32S3 module onboard with the WiFi and Bluetooth
- - Ready to use, power it on directly to use
- - Module name/signal interval settable easily by phone
- - IP68 water-proof
- - Temperature: -40℃~80℃，±0.3
- - Humidity: 0~100% moisture
- - CO2: 0~1000 ppm
- - Light intensity: 1 - 65535 lx
- - Communication distance: Lora: >3km
- - 1000mAh battery, charger IC onboard
- - Solar panel 6W, ensure system works
