NodeMCU Mini

$7.90
Availability: In stock
SKU
OOC8266NM

Based on those MakePython solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

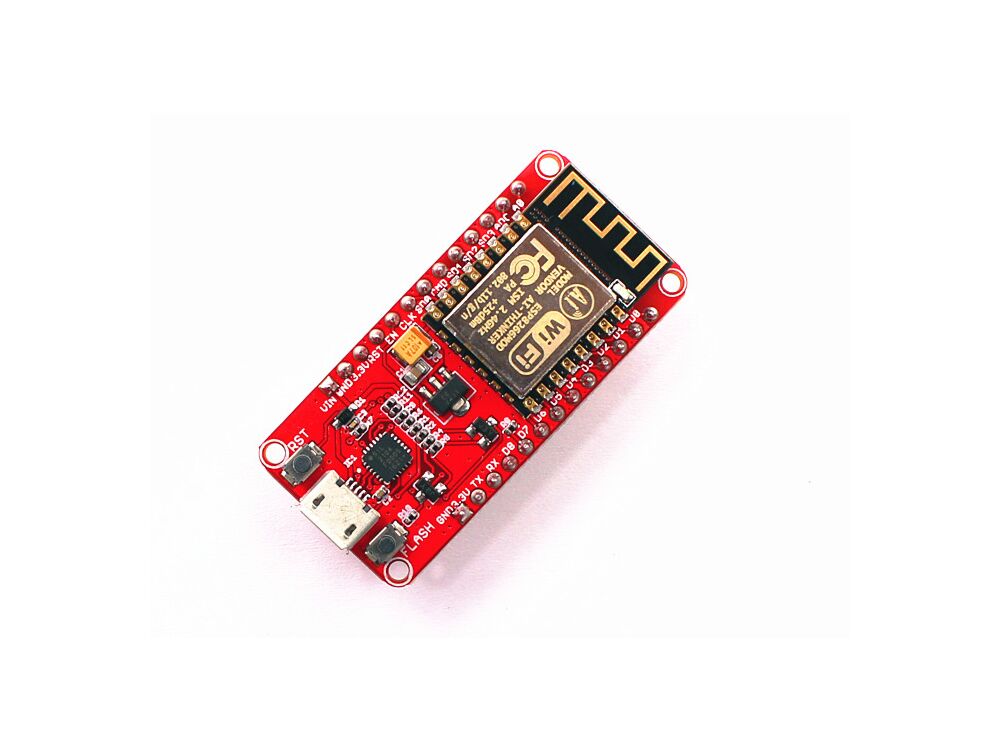

NodeMCU Mini is an ESP8266 WiFi microcontroller at 80MHz and at 3.3V logic. This microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core or using the Lua script language. We had shipped with NodeMCU 0.9.5 build 20150704 powered by Lua 5.1.4, so we can directly use the Lua language to DIY the IoT project. We wired up a high-quality SiLabs CP2104 USB-Serial chip that can upload code at a blistering 921600 baud for fast development time. It also has auto-reset so no noodling with pins and reset button pressings.

Features:

  • Supermini dimension: 23mm x 48.3mm x 13mm
  • ESP8266 @ 80MHz with 3.3V logic/power
  • 4MB of FLASH (32 MBit)
  • Built-in WiFi 802.11 b/g/n
  • CP2104 USB-Serial converter onboard with 921600 max baudrate for speedy uploading
  • Auto-reset support for getting into bootload mode before firmware upload
  • Output all the GPIO of ESP-12F
  • With the Reset button and the Flash button
  • Package List:

  • 1 x NodeMCU Mini
  • Documents:

  • Schematic
  • User Manual
  • Tools and firmware
