This Kit is composed of Makerfabs Raspberry Pi embedded system Development Platform and 8 Makerfabs Mabee modules, for lite application prototyping based on PI.
The Raspberry Pi has been used in a wide array of digital maker projects, and there has been a huge amount of Raspberry Pi expansion/hats on the market, to help users learn/use the Raspberry PI in applications.
This Makerfabs Embedded system development platform could the most special, for make it true for the users creating an embedded system application with PI, suitable for lite PI applications.
This platform based on Raspberry Pi Zero-W, it has an SPI 3.2" display with touch. The "SPI" means it does not use the Raspberry PI HDMI display, that you can also connect it to a normal PC display with HDMI,
for dual-channel displaying, suitable for lite/mobile applications; There 2 pcs on-board MEMS MIC and speaker, for applications that need voice interface; There also A/D convertors and Mabee(Grove) interfaces for infinite applications, to make this platform a good choice to projects prototyping.
Makerfabs prepared all the modules’ drivers based on C or Python, users can easily check the detailed usages/Demo applications, and integrate/transplant them to users own applications easily.
Features
Raspberry pi zero W, 1GHz single-core CPU, 512MB RAM, Micro USB OTG port, Mini HDMI port, CSI camera connector, wireless LAN, and Bluetooth
3.2inch display, 320x240, ili9341 driver with SPI
Resistive touch screen, XPT2046 controller
Speaker
3.5mm audio jack
Stereo Codec with Class D Speaker Driver: WM8960
MEMS Mic*2: AOS3729A-T42-NXC
Hardware expandable: I2C port, GPIO port, UART port
ADC port:ADS1115
Type-C USB power or battery power
Support chargeable and 1A Maximum charging current
Overcharge and over-discharge protection
Size: 94mm*80mm*24mm

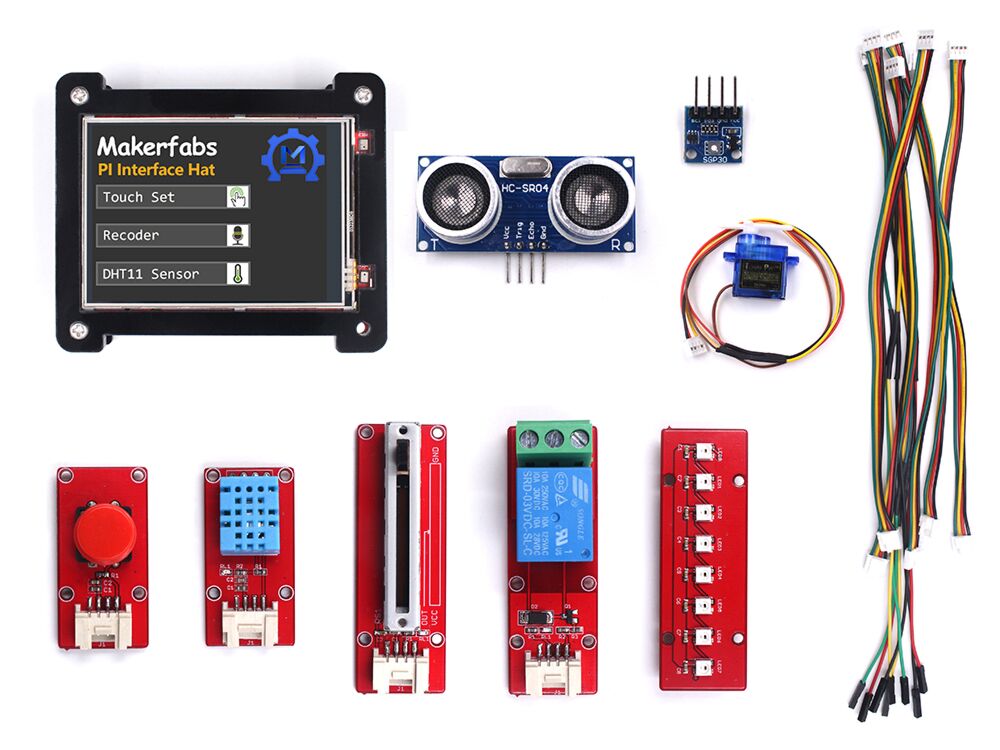

Parts List:
Raspberry PI Embedded system Development Platform(Pi Zero W) with Case
Mabee_Temperature& Humidity DHT11
Mabee_Button
Mabee_Relay_10A
Mabee_Slide Potentimeter
Mabee_WS2812_12bit
Mabee_Servo SG90
Mabee_SGP30 Air Quality Sensor Breakout - VOC and eCO2
