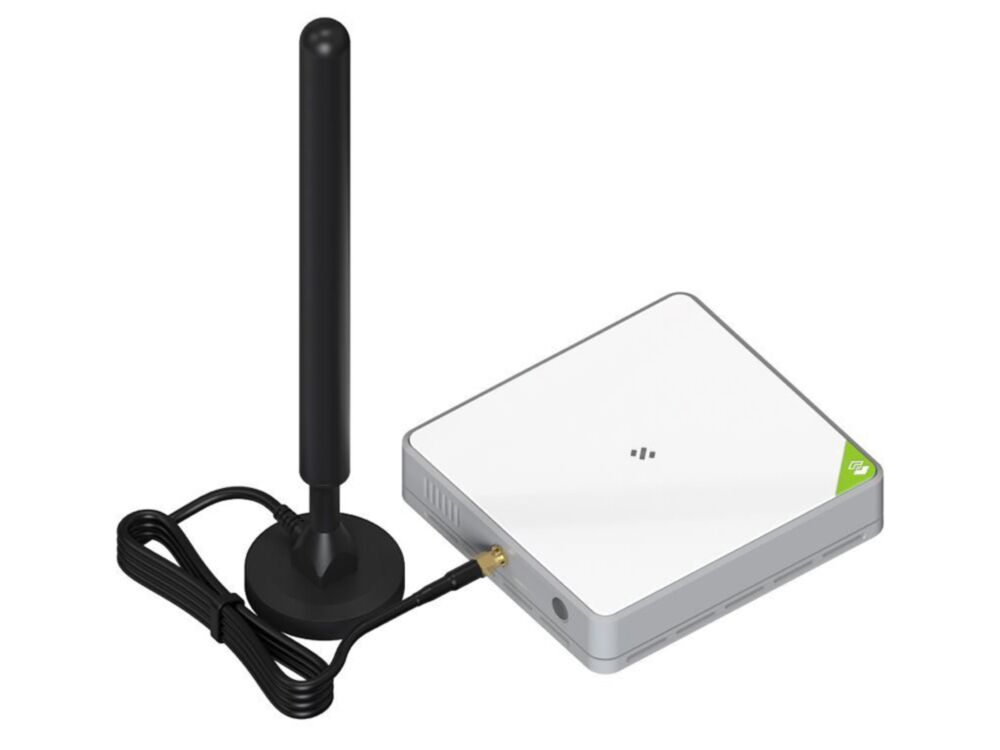

SenseCAP Multi-Platform LoRaWAN Indoor Gateway(SX1302-4G)

$149.00
The SenseCAP M2 Multi-Platform LoRaWAN® Gateway is a fully customizable and open-sourced LoRaWAN® gateway that supports connection to various network servers
Availability: In stock
SKU
SECPMPLW4G

After extensive testing with various LoRaWAN gateways during our node development, we found the SenseCAP gateway from Seeed to be the most compatible and reliable choice—especially well-suited for integration with our AgroSense product series.Compared to the SenseCAP M2 (SX1302), this gateway’s key advantage is its built-in 4G support.



This SenseCAP M2 Multi-Platform LoRaWAN® Gateway is a fully customizable and open-sourced LoRaWAN® gateway that supports connection to various network servers. It supports global LoRaWAN® frequency plans from 865 MHz to  923 MHz and can be used in multiple LoRaWAN® applications like smart building, environmental monitoring systems, precision farming, etc. It has wide-range coverage and strong signal output capability and other features, making it the perfect gateway for building a LoRaWAN® network.

Note

  • The SenseCAP M2 Multi-Platform LoRaWAN® Gateway doesn't support the Helium network. It can not be connected with SenseCAP Hotspot APP and SenseCAP Dashboard.
  • Please contact the SenseCAP MX Team on the Official SenseCAP MX Community Discord Channel for tech support.



Key Features

  • Open-Source Support: Easily customize and develop users own LoRaWAN solutions for seamless integration into their specific use cases. Check out details here.
  • Support Multiple LoRaWAN® Network Servers: Compatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics™ Station mode.
  • Built-in LoRaWAN Network Server: Based on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
  • Built-in SenseCAP Local Console for Configuration: Provides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.
  • Support Power-over-Ethernet (PoE): For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.
  • Wide-range Coverage and Strong Signal: Provides up to 10km of LoRaWAN® coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
  • Excellent and Stable Performance: The gateway is powered by the mature hardware solution MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular(optional)、Wi-Fi and Ethernet internet connection.
  • Professional Management Tools and Cloud Services: Users could easily set up the gateway in a few simple steps via Web Interface. SenseCAP Portal and SenseCAP Local Console are also developed for users to monitor and manage the gateway efficiently and easily.

Usage

The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCAP Mate APP and SenseCAP Portal in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN® network solutions.

  • Scan the QR code for device binding
  • Connect gateway to internet and power on
  • Check gateway status on the SenseCAP platform
  • Connect sensors to the network and upload data to the cloud

SenseCAP M2 Multi-Platform LoRaWAN® Gateway can be configured in 2 ways:

  1. Wi-Fi/ Ethernet access to the SenseCAP Local Console
  2. Access the SenseCAP Local Console via SenseCAP Portal remotely

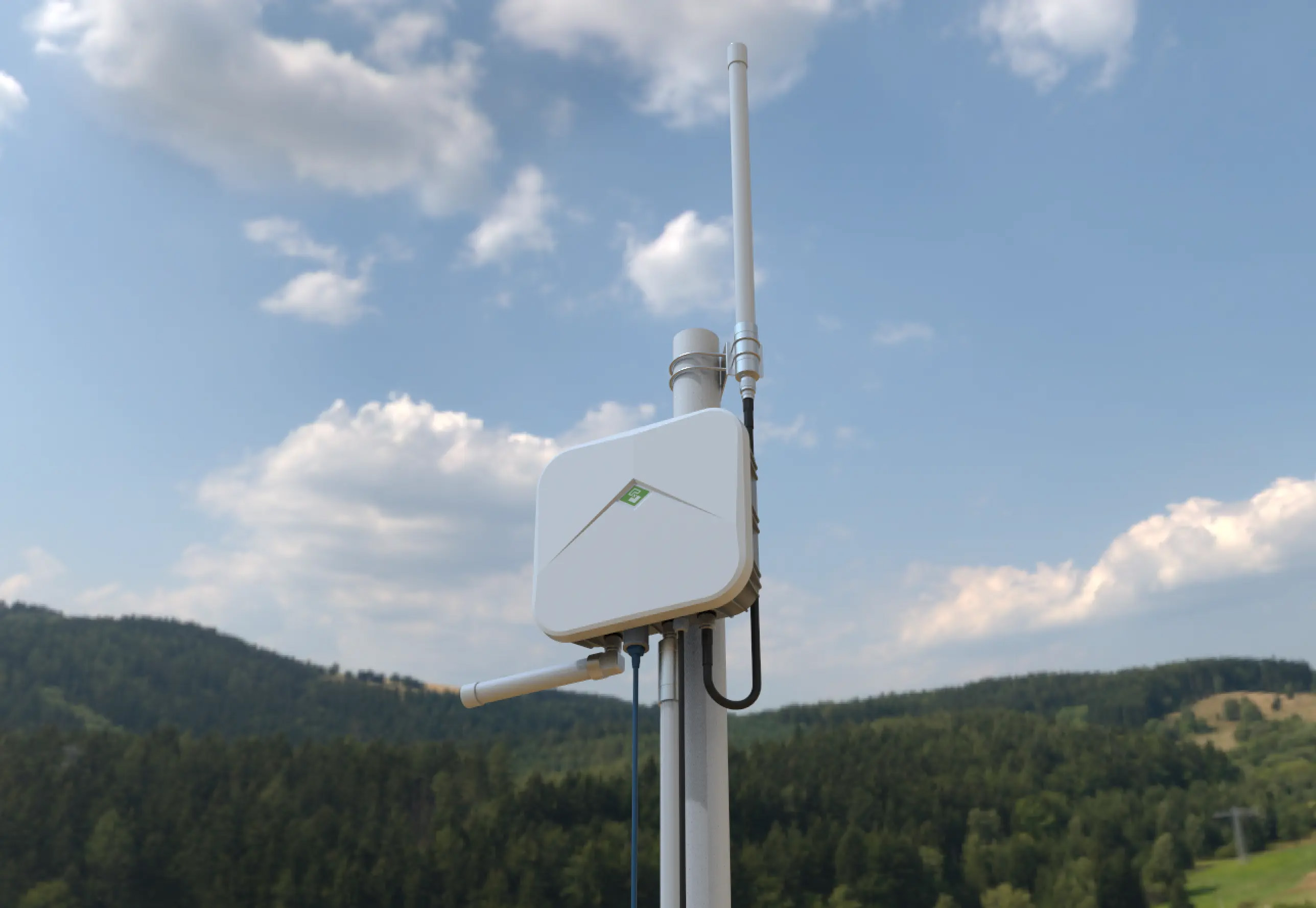

Additionally, If you want to deploy the SenseCAP M2 Multi-Platform LoRaWAN® Gateway outdoors, you might need to apply shell accessories to meet the requirements for outdoor deployments. Check the SenseCAP Ourdoor Enclosure with high robustness for quick deployment.

Applications

  • Smart Agriculture
  • Smart Building
  • Environmental Monitoring
  • Other Wireless Sensing Applications

Specifications

Processor  MT7628(MIPS24KEc@580MHz)
RAM DDR2 128MB
Flash 32MB
Long Range Gateway Chip SX1302
Channel 8
LoRaWAN® Protocol V1.0.3 Class A/Class B/Class C
Frequency Plan IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity -125dBm @125KHz/SF7
-139dBm @125KHz/SF12
Long Range TX Power Up to 26 dBm
Antenna

Long Range: 3dBi External Antenna with Base

Wi-Fi: Internal Antenna

4G Antenna:

Main Antenna:3dBi @ PCB Antenna

DIV Antenna:4dBi @FPC Antenna

Antenna Impedance 50 Ohm
Wi-Fi  Support 2.4 GHz 802.11 b/g/n
Ethernet 1xRJ45 (10M / 100 M), PoE PD support
4G Band

LTE-FDD: B2/B4/B5/B8/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

4G Features

Support non-CA Cat 4 FDD

LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)

UMTS Features

Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA

DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)

WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)g

Input Voltage

DC 12V - 2A

PoE (IEEE 802.3 af), 40V-57V DC

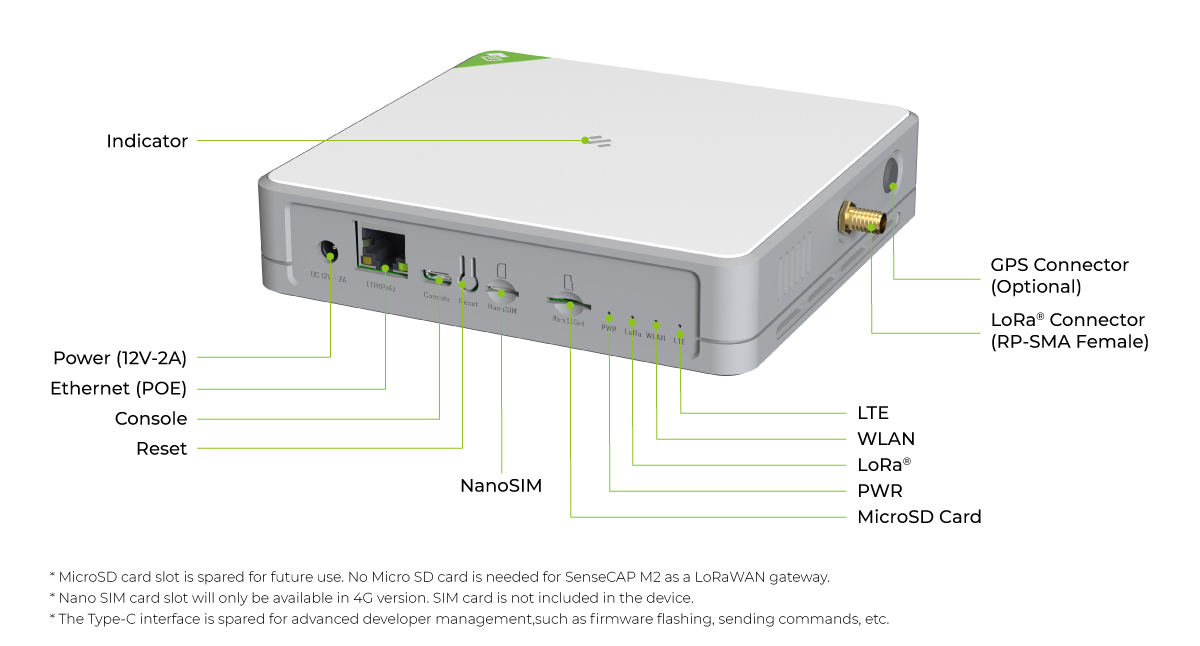

Interfaces

Ethernet RJ45 * 1

RP-SMA Female Antenna Connector * 1

Micro SD Card Slot (Future use)  * 1

USB Type-C (Console) * 1

Management Software Web
Dimension

143.6x135x34mm (connector not included)

150.6x135x34mm (connector included)

Package: 340*230*65mm

Operating Temperature -20°C to 55°C
Relative Humidity 0% - 85% (non-condensing)



Part List

SenseCAP M2 Multi-Platform LoRaWAN® Gateway 1
Adapter 1
3dBi LongRange Antenna 1
