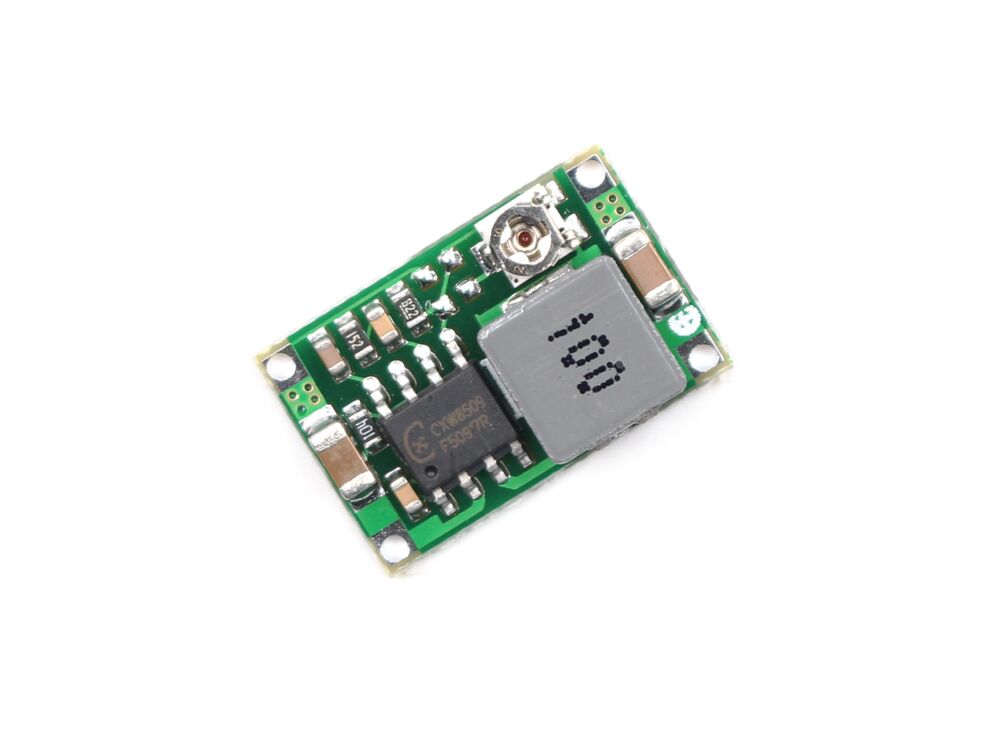

Super Mini DC-DC Module- Mini-360

Be the first to review this product

$0.35

Availability: In stock

SKU

MPC360DCM

This is a supermini DC-DC module, onboard with adjustable resistance, automatic power failure protection when temperature up to 85℃.

Features:

Module Properties: non-isolated buck

Rectification: synchronous rectification

Input voltage: 4.75V-23V

Output voltage: 1.0V-17V

Output Current: lowering the value of 3A, long 1.8A

Conversion efficiency: 96% (maximum)

Switching Frequency: 340KHz

Output ripple: 30mV (no-load)

Load regulation: 0.5%

Voltage regulation: 2.5%

Working temperature: -40℃ to +85℃

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Package List:

1 x Super Mini DC-DC module- Mini-360
