Makerfabs Labor Day Holiday Notice: 1/5/2024-5/5/2024
Makerfab 4G LTE Review bonuses Campaign -The $100-$300 huge bonus with refounds !
25
Apr
Makerfabs 4G LTE series has has been well received by the market
As we all know that the 2G GSM/GPRS is close in most countries & regions, such as Australia/Canada… But there are indeed some projects that need remotely wireless communication, or access to the Internet, such as remote environmental monitoring. Considering the investment/risky, for most cases, the 4G is still a proper solution by now.
Our 4G LTE products uses the SIMCOM7600 / A7670 / SIM7670G / SIM7080G module, to help Makers to achieve the 4G connection easily. Besides, there are modules(SIM7670G/SIM7080G) can be a fully 4G access to your computer/PI, and also for telephone/SMS . Help you easily remotely wireless communication in your IOT project!
The market is also proving to be a very popular product , it is the trust of our customers that has enabled us to achieve such remarkable success. To show our gratitude, we are excited to announce a special event.
- Review bonuses : winners can get a cash prize of $100-$300；
- Refunds: participate and place an order during the event.
How the Review bonuses Campaign works?
- Review bonuses :make Review (articles/videos/Other forms) of 4G LTE products to participate , winners can get a cash prize of $100-$300
There will be 6 winners:
- First prize :one winner -$300;
- Second prizes :two winners -$200;
- Third prizes:three winners-$100;
- Refunds: participate and place an order during the event,then contact us.
How to Participate:
- Like and Retweet
- Follow@Makerfabs
- Make Review (articles/videos/Other forms) of our 4G LTE products and @us
Drawing winners on 30/06/2024
Event Time:25/04/2024- 30/05/2024

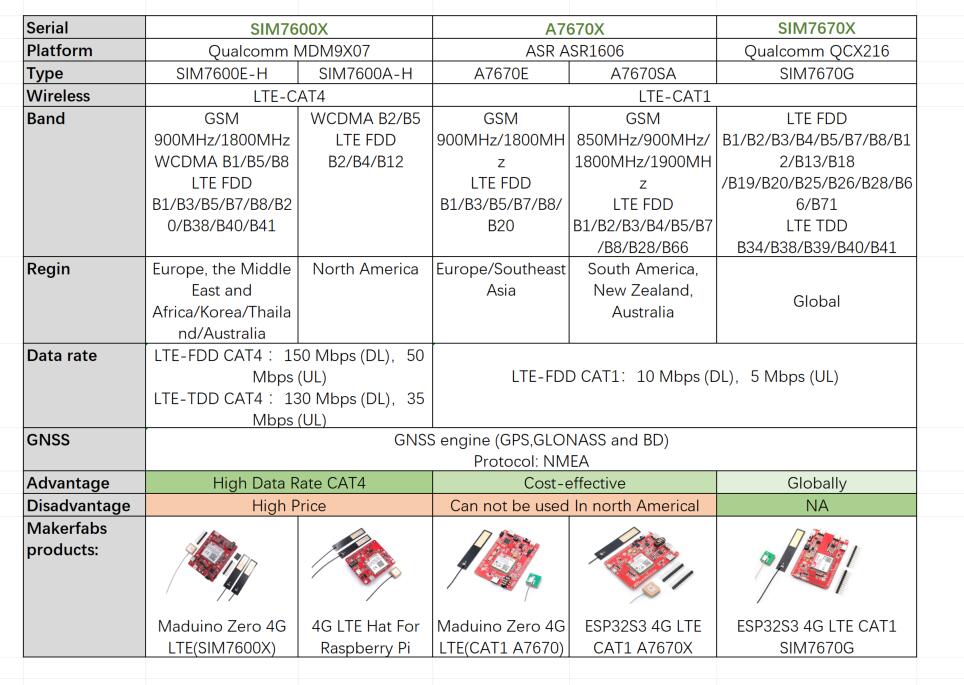

Makerfabs 4G LET series product:
|
Name |
Maduino Zero 4G LTE(CAT4 SIM7600X) | 4G LTE Hat For Raspberry Pi | Maduino Zero 4G LTE(CAT1 A7670) | ESP32S3 4G LTE CAT1 A7670X | Maduino Zero NB-IoT SIM7080G | ESP32S3 4G LTE CAT1 SIM7670G (Coming soon) |
||||
| Wireless | GSM, WCDMA, LTE-TDD and LTE-FDD | WCDMA, LTE-FDD | GSM, WCDMA, LTE-TDD and LTE-FDD | WCDMA, LTE-FDD | GSM, LTE-TDD and LTE-FDD | GSM, LTE-TDD and LTE-FDD | GSM, LTE-TDD and LTE-FDD, WiFi& Bluetooth | LTE CAT-M1,NB-IOT | LTE-TDD and LTE-FDD, WiFi& Bluetooth | |
| LTE Module | SIM7600E-H | SIM7600A-H | SIM7600E-H | SIM7600A-H | A7670E | A7670SA | A7670E | A7670SA | SIM7080G | SIM7670G |
| Regin | Europe, the Middle East and Africa/Korea/Thailand/Australia | North America | Europe, the Middle East and Africa/Korea/Thailand/Australia | North America | Europe/Southeast Asia | South America, New Zealand, Australia | Europe/Southeast Asia | South America, New Zealand, Australia | Global | |
| Frequency bands | GSM 900MHz/1800MHz WCDMA B1/B5/B8 LTE FDD B1/B3/B5/B7/B8/B20/B38/B40/B41 |
WCDMA B2/B5 LTE FDD B2/B4/B12 |
GSM 900MHz/1800MHz WCDMA B1/B5/B8 LTE FDD B1/B3/B5/B7/B8/B20/B38/B40/B41 |
WCDMA B2/B5 LTE FDD B2/B4/B12 |
GSM 900MHz/1800MHz LTE FDD B1/B3/B5/B7/B8/B20 |
GSM 850MHz/900MHz/1800MHz/1900MHz LTE FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 |
GSM 900MHz/1800MHz LTE FDD B1/B3/B5/B7/B8/B20 |
GSM 850MHz/900MHz/1800MHz/1900MHz LTE FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 |
LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85 | LTE FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28/B66/B71 LTE TDD B34/B38/B39/B40/B41 |
| Category | LTE-CAT4 | LTE-CAT4 | LTE-CAT1 | LTE-CAT1 | LTE CAT-M1,LTE CAT-NB1/NB2 | LTE-CAT1 | ||||
| Data Transfer | LTE-FDD CAT4 ：150 Mbps (DL)，50 Mbps (UL) LTE-TDD CAT4 ：130 Mbps (DL)，35 Mbps (UL) |
LTE-FDD CAT4 ：150 Mbps (DL)，50 Mbps (UL) LTE-TDD CAT4 ：130 Mbps (DL)，35 Mbps (UL) |
LTE-FDD CAT 1：10 Mbps (DL)，5 Mbps (UL) LTE-TDD CAT1：8.96 Mbps (DL)，3.1Mbps (UL) |
LTE-FDD CAT 1：10 Mbps (DL)，5 Mbps (UL) LTE-TDD CAT1：8.96 Mbps (DL)，3.1Mbps (UL) |
LTE CAT M1: 589 Kbps (DL), 1119 Kbps (UL) LTE CAT NB2: 136 Kbps (DL) ,150 Kbps (UL) |
LTE-FDD CAT 1：10 Mbps (DL)，5 Mbps (UL) | ||||
| GNSS | GNSS engine (GPS,GLONASS and BD) Protocol: NMEA |
GNSS engine (GPS,GLONASS and BD) Protocol: NMEA |
GNSS engine (GPS,GLONASS and BD) Protocol: NMEA |
GNSS engine (GPS,GLONASS and BD) Protocol: NMEA |
GNSS engine (GPS, GLONASS, BD and Galileo). Protocol: NMEA. |
GNSS engine (GPS, GLONASS, BD) | ||||
| USIM interface | Support identity card: 1.8V/ 3V | Support identity card: 1.8V/ 3V | 1.8V/ 3V | 1.8V/3V | 1.8V Only | 1.8V/3V | ||||
| Audio feature | Support PCM interface | Support PCM interface | Support PCM interface | Support PCM interface | N | NA | ||||
| MMC/SD | MMC and SD cards for SIM7600X MMC and SD cards for MCU |
MMC and SD cards for SIM7600X MMC and SD cards for MCU |
MMC and SD cards for MCU | MMC and SD cards for MCU | MMC and SD cards for MCU | MMC and SD cards for MCU | ||||
| USB | Dual USB：One USB 2.0 high speed interface for Module One USB 2.0 for MCU |
Dual USB：One USB 2.0 high speed interface for Module One USB 2.0 for MCU |
Dual USB：One USB 2.0 high speed interface for Module One USB 2.0 for MCU |
Dual USB：One USB 2.0 high speed interface for Module One USB 1.1 for MCU |
Dual USB：One USB 2.0 high speed interface for Module One USB 2.0 for MCU |
Dual USB：One USB 2.0 high speed interface for Module One USB 1.1 for MCU |
||||
| GNSS operating bands | GPS:1575.42±1.023MHz GLONASS:1597.5~1605.8MHz BeiDou:1561.098±2.046MHz |
GPS:1575.42±1.023MHz GLONASS:1597.5~1605.8MHz BeiDou:1561.098±2.046MHz |
GPS:1575.42±1.023MHz GLONASS:1597.5~1605.8MHz BeiDou:1561.098±2.046MHz |
GPS:1575.42±1.023MHz GLONASS:1597.5~1605.8MHz BeiDou:1561.098±2.046MHz |
GPS:1575.42±1.023MHz GLONASS:1597.5~1605.8MHz BeiDou:1561.098±2.046MHz |
GPS:1575.42±1.023MHz GLONASS:1597.5~1605.8MHz BeiDou:1561.098±2.046MHz |
||||
| Controller | ATSAMD21G18A | N | ATSAMD21G18A | ESP32-S3 | ATSAMD21G18A | ESP32-S3 | ||||
| Clock frequency | Cortex®-M0 48MHz | N | Cortex®-M0 48MHz | Xtensa® dual-core 160MHz | Cortex®-M0 48MHz | Xtensa® dual-core 160MHz | ||||
| RAM | 32KB | N | 32KB | 8MB | 32KB | 8MB | ||||
| Flash | 256KB | N | 256KB | 16MB | 256KB | 16MB | ||||
| USB to UART Chip | N | N | N | CH340K | N | CH340K | ||||
| Power Supply | USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery |
USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery |
USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery |
USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery |
USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery |
USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery |
||||
| Button | Boot/Reset/PWK | PWK | Boot/Reset/PWK | Boot/Reset/PWK/RST | Boot/Reset/PWK | Boot/Reset/PWK/RST | ||||
| Mabee interface | N | N | N | N | N | N | ||||
| Arduino support | Y | N | Y | Y | Y | Y | ||||
| MicroPython support | N | N | N | Y | N | Y | ||||
| Raspberry Pi support | N | Y | N | N | N | N | ||||
| Operation temperature | -30℃ to +80℃ | |||||||||
| Price | $64.80 | $59.80 | $34.80 | $32.90 | $36.90 | NA | ||||
product link:
Maduino Zero 4G LTE(SIM7600X): https://www.makerfabs.com/maduino-zero-4g-lte-sim7600.html
4G LTE Hat For Raspberry Pi: https://www.makerfabs.com/4g-lte-hat-for-raspberry-pi.html
Maduino Zero 4G LTE(CAT1 A7670): https://www.makerfabs.com/maduino-zero-4g-lte-cat1-a7670.html
ESP32S3 4G LTE CAT1 A7670X: https://www.makerfabs.com/esp32s3-4g-lte.html
Maduino Zero NB-IoT SIM7080G: https://www.makerfabs.com/maduino-zero-nb-iot-sim7080g.html
Makerfabs is an open hardware designer&producer with experience in IOT (WiFi/BLE/LoRa/GPRS) projects, Arduino/ ESP32/Rapaberry Pi and specializes in small batch PCB & PCBA solutions, providing efficient and high quality services.
