Update: ESP32 3.5 inch TFT screen support LVGL:
Project demos: Check 5 great ESP32 projects on this 3.5 inch TFT screen:
Demo with cool UI displays:

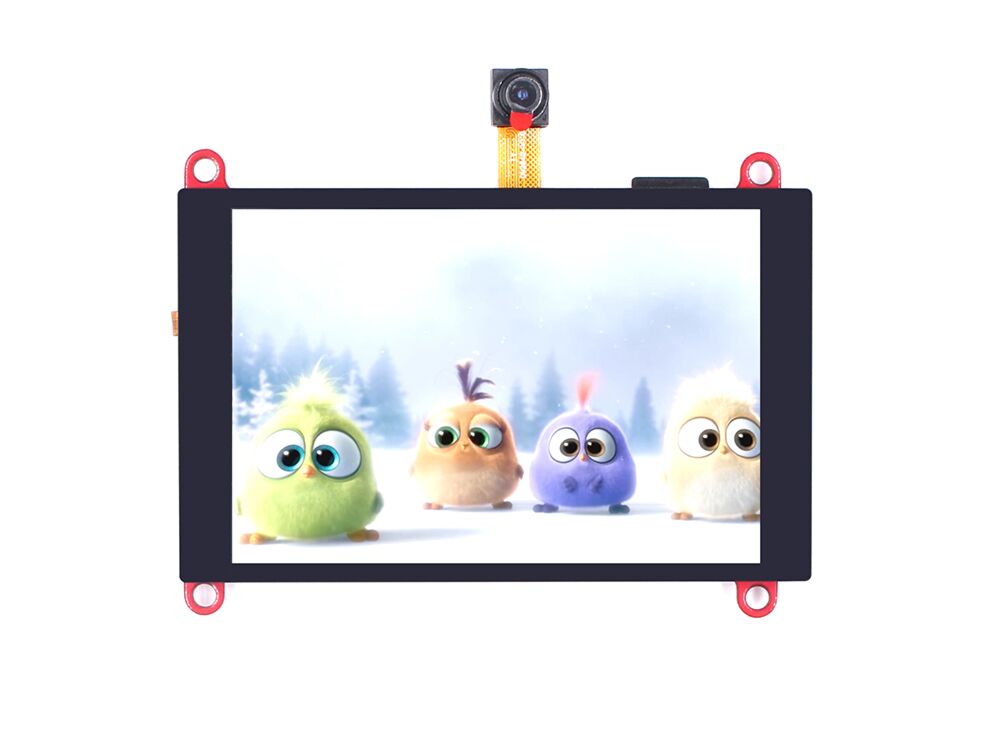

A beautiful 3.5” touchscreen display, based on ESP32-WROVER, with a built-in 2M pixel OV2640 camera, makes it an ever perfect platform for your ESP32 projects.
We added an Acrylic case for ESP32 3.5 Inch Capacitive Touch Screen. You can select the Acrylic case for your preference.
Free 16G SanDisk SD Card for ESP32 3.5"/3.2" TFT Touch, so you can test the display& camera by simply powering it up.
The 3.5" 320x480 TFT LCD driver is ILI9488, it uses SPI for communication with ESP32, the SPI main clock could be up to 60M~80M, making the display smooth enough for videos; and the camera OV2640 with pixel 2M, with this camera, you can make applications such as remote photography, face recognition…. While the camera is not used, you can freely use all these pins with the breakout connectors, to connect the ESP32 display with sensors/ actuators, suitable for IoT applications.
The ESP32 TFT
Touch support Arduino or MicroPython programming. This version is Touch Capacitive, you can also get the Touch Resistive here, both precisely
and stable, select the one you prefer.
Makerfabs ESP32 3.5” Touch with camera is absolutely open for makers, and besides, Makerfabs provide plenty of Demos to help the users on the usage. Have a try at this fantastic display in your next ESP32 project!~
