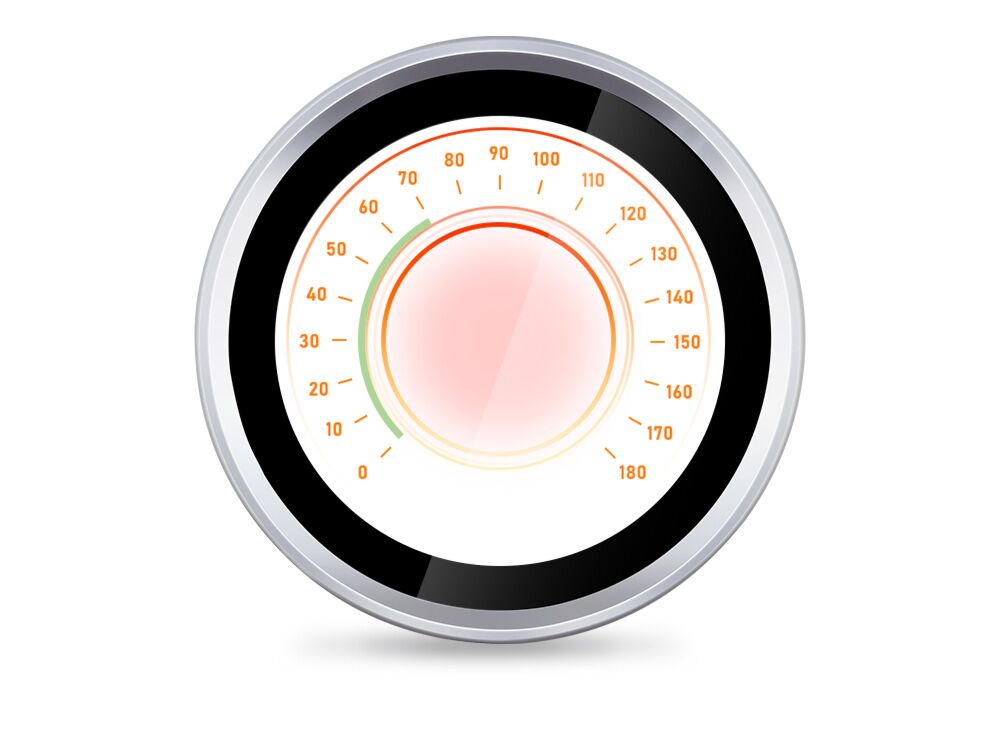

MaTouch ESP32-S3 Rotary IPS Display with Touch 2.1“ ST7701

Availability: In stock

The Latest ESP32S3 2.1 inch Touch display with Rotary switch available!

The display is 480*480 resolution IPS with capacitive touch, connection with the controller is RGB5/6/5, with reflash rate up to 75 FPS. It is high brightness and with 65K color. The Mechanic Rotary encoder supports clockwise/anti-clockwise rotation, with good smooth feeling, it also supports the whole pressing operation, which can be used normally for operation confirming.

This display module is based on ESP32S3 IC, with 8M PSRAM and 16M flash on board, support Wifi& Bluetooth 5.0, make it easy to connect to internet for IOT projects. it can be powered& programmed directly by the USB connector. Besides, it has 2 expansion connectors, I2C and UART.

This 2.1 inch display support LVGL good, with squareline IDE, users can develop UI in few steps. There we prepared a detailed guidance on how to use the squareline to make a Digital combination lock at our WIKI for your reference
8 channel realy

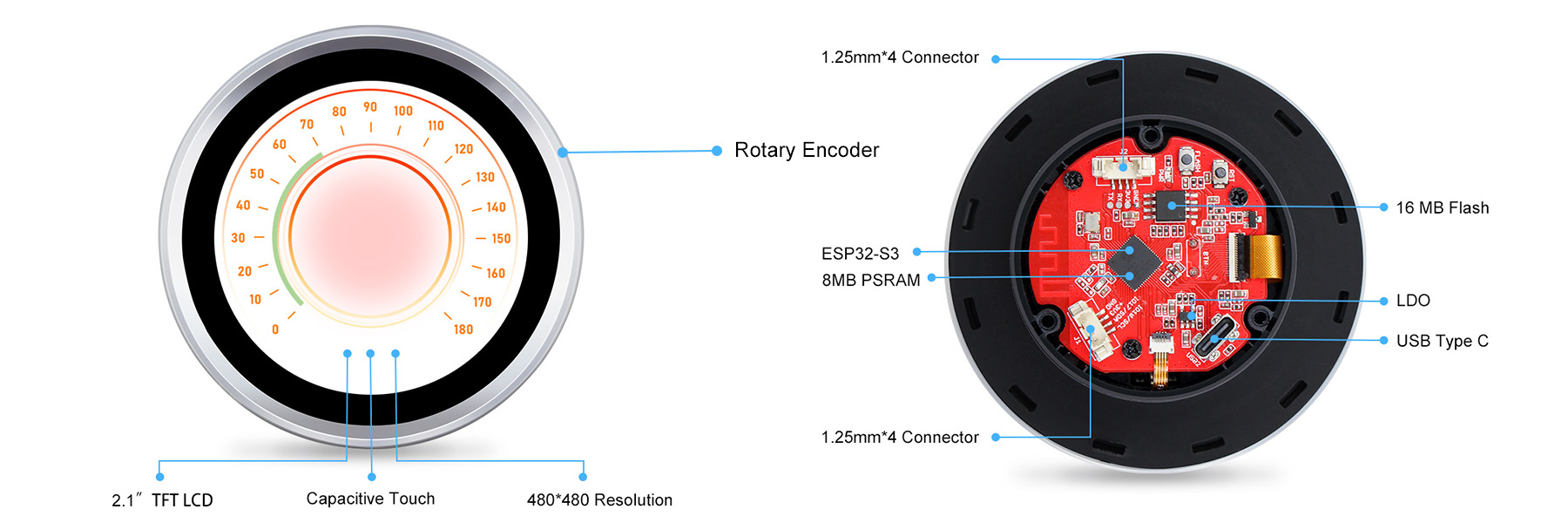

This display could be a fantastic module for your projects, it features:

1. 480*480 high resolution display, with lightness > 400;

2. Capacitive Touch

3. Rotary encoder, with clockwise/anticlockwise smooth rotating and pressing operation,


  • Controller: ESP32-S3-WROOM-1, PCB Antenna, 16MB Flash, 8MB PSRAM, ESP32-S3-WROOM-1-N16R8
  • Wireless: Wifi& Bluetooth 5.0
  • LCD: 2.1 inch High Lightness IPS,65K color
  • LCD Driver:ST7701S
  • FPS: >70
  • Resolution: 480*480
  • LCD interface: RGB 565
  • Touch Panel: 5 Points Touch, Capacitive
  • Touch Panel Driver: CST8266
  • USB: USB Type-C native
  • Interface: I2C*1; UART*1 (1.25mm 4P Connector)
  • Arduino support: Yes
  • Operation temperature: -40℃ to +85℃

  • Files:

  • wiki
  • Usage with Squareline/LVGL
  • Github
  • ESP32-S3 Datasheet
