MaTouch_ESP32 3.5" TFT Touch(Resistive) with Camera

MaTouch_ESP32 3.2" TFT Touch with Camera

$39.80
Availability: In stock
SKU
ESPTFT32CA

Update: We added an Acrylic case for ESP32 3.2 Inch TFT Touch Screen. You can select the Acrylic case for your preference.

ESP32-3.2-inch-TFT-Touch-Resistive-with-Acrylic-CaseESP32-3.2-inch-TFT-Touch-with-Acrylic-Case

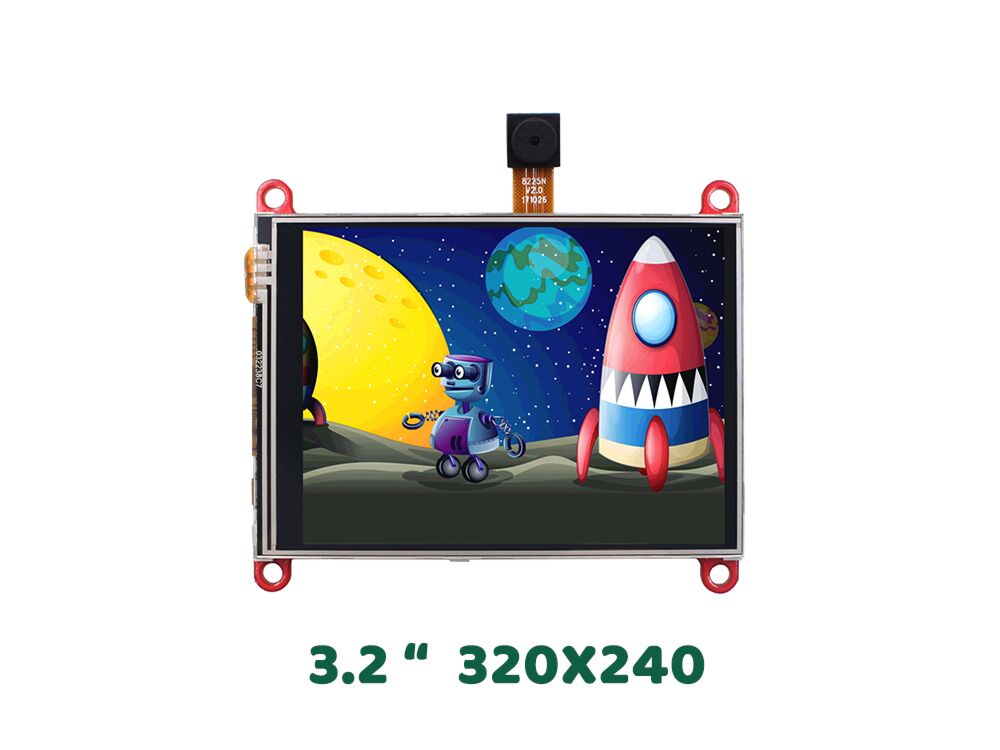

This module is the 3.2” version of the ESP32 touchscreen display, based on ESP32-WROVER, with a built-in 2M pixel OV2640 camera. The LCD is 320x240 TFT, with driver is ILI9341, it uses SPI for communication with ESP32, the SPI main clock could be up to 60M~80M, make the display smooth enough for videos; and the camera OV2640 with pixel 2M, with this camera, you can make applications such as remote photography, face recognition…
While the camera not used, you can freely use all these pins with the breakout connectors, to connect the ESP32 display with sensors/ actuators, suitable for IoT applications.
This 3.2-inch ESP32 display is fully compatible with the Adafruit Arduino ILI9341 libraries, which make it easy to use with Arduino.

Good News Updated on 12/29/2020:

Free 16G SanDisk SD Card for ESP32 3.5"/3.2" TFT Touch, so you can test the display& camera by simply powering it up.

Demos for ESP32 TFT Touch Screen

  • Demos_1: (1) Electronic Keyboard (2) GIF Display (3) Digital Photo Album
  • Demos_2:
  • Specification:

  • 3.2 inch display, 320x240;
  • Resistive Touch
  • ESP32-WROVER Controller
  • 2M pixel OV2640 Camera
  • WIFI/ BLE Connection.
  • Onboard USB2UART convertor for ESP32 programming
  • Onboard SD card socket
  • USB connector Type-C
  • Documents:

  • Schematic
  • Wiki
  • Hardware&Software on Github
