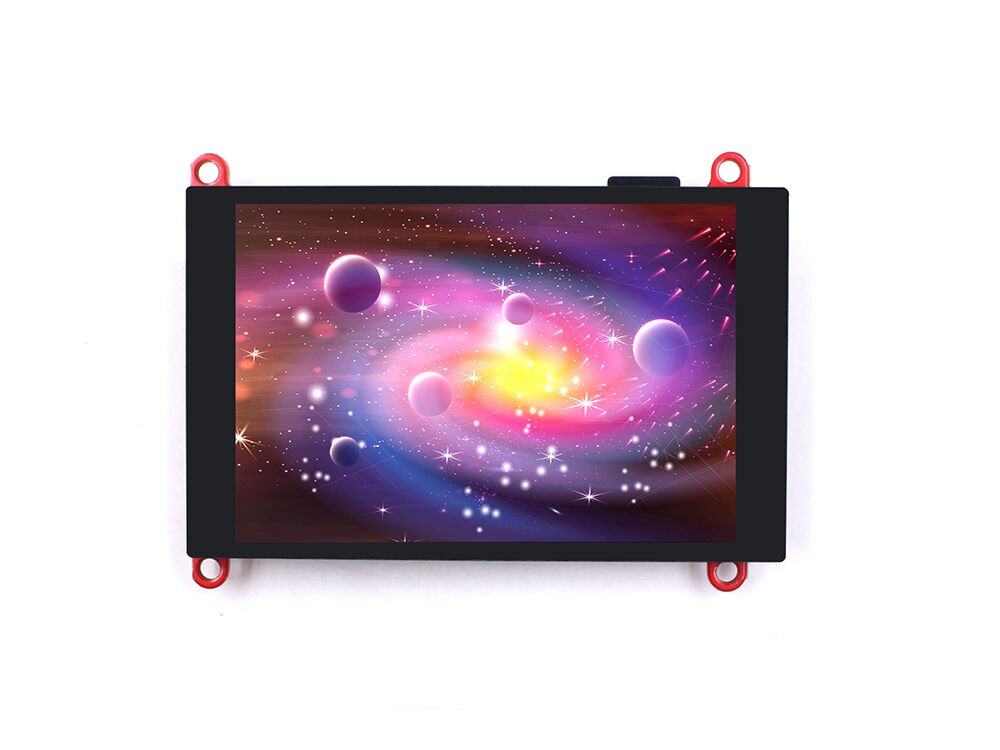

MaTouch_ESP32-S2 Parallel TFT with Touch 3.5'' ILI9488 V1.1

-15% MaTouch_ESP32-S2 Parallel TFT with Touch 3.5'' ILI9488 V1.1

This ESP32-S2 version is completely upgraded to the S3 version, so please buy the New ESP32-S3 TFT Touch!

The Makerfabs 3.5 inch TFT Touch is great but the refresh rate is always a problem, some customers feedback they want a higher speed display. But as the ESP32 has limited pins, we do not have a good way for that, until we find the ESP32-S2, which do not have BLE(compares to ESP32), but more pins, right for such a parallel TFT.

This 3.5" 320x480 TFT LCD driver is ILI9488, it uses 16bits parallel line for communication with ESP32-S2, the main clock could be up to 20MHz, making the display smooth enough for video displays. With this display, you can freely to create more IoT display projects, check the demo project in the video:

Besides, there 2 onboard Mabee pins(A I2c and an IOs) with the breakout connectors, to connect the ESP32-S2 display with sensors/ actuators, suitable for IoT applications.





  • GitHub
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 42651
    • Product Code: ESP32S235D
    • Availability: Out Of Stock
    • $39.80
    • $33.83

    Available Options
