MaTouch ESP32-S3 RotaryIPS-Display1.28

MaTouch ESP32-S3 RotaryIPS-Display1.28" GC9A01

MaTouch ESP32-S3 SPI IPS 2.8" with Camera OV3660

$26.80
With the 3 million (3MP) pixel camera (ov3660), it can shoot a maximum of 2048x1536 resolution photos& videos, suitable for smart applications such as remote monitoring/face detecting, etc.. Also this module support the LVGL well. .
Availability: In stock
SKU
MA028IPSPI

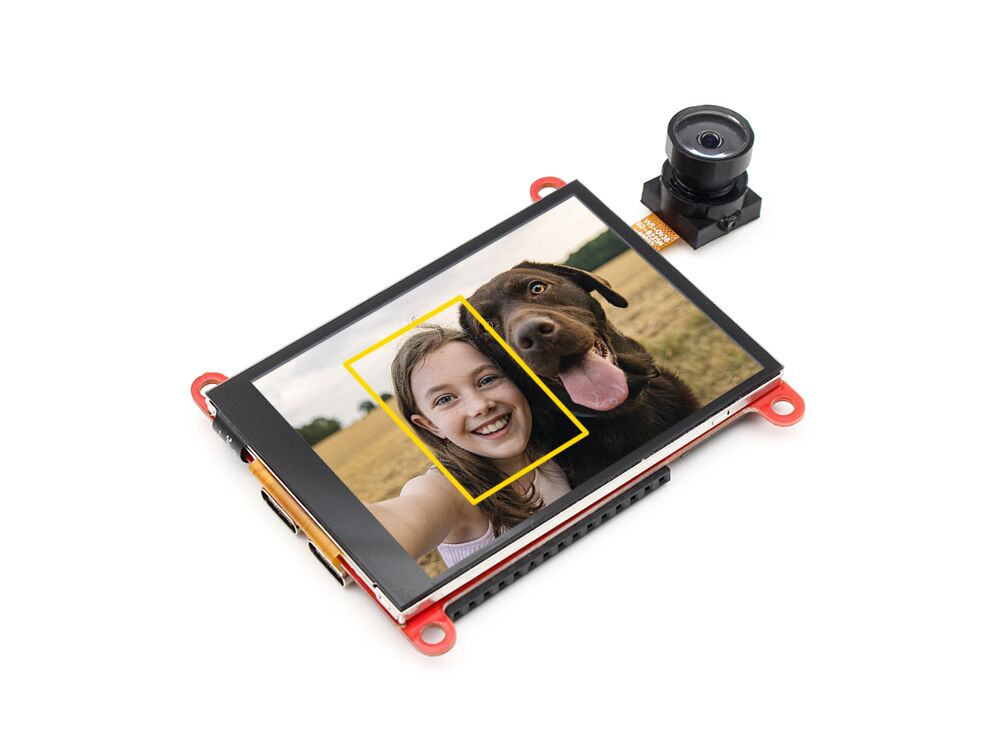

This 2.8” display with capacitive touch is based on SPI interface, compares to the parallel version, it uses much less ESP32 Pins, so it possible to expand the applications.  With the 3 million (3MP) pixel camera (ov3660), it can shoot a maximum of 2048x1536 resolution photos& videos, suitable for smart applications such as remote monitoring/face detecting, etc..  Also this module support the LVGL well. .

The interface of the display is SPI, while the touch panel is I2C, Besides, there is a SD card in the display, for customer storage such as pictures, so customers do not need to bother purchasing them.






Based on those ESP32 Touch display solutions, Makerfabs can also help to customize those boards with customer's special requests. Pls contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.



Specs:

  • - Controller: ESP32-S3
  • - Wireless: WiFi& Bluetooth 5.0
  • - LCD: 2.8", 320x240 resolution, driver ST7789V
  • - LCD interface: SPI,16bit
  • - FPS: >30
  • - Camera: OV3660, 3M, DFOV 66.5°
  • - Flash:16MB Flash
  • - PSRAM:8MB
  • - Touch Panel: 5 Points Touch, Capacitive
  • - Touch Panel Driver: GT911
  • - USB: 1 * USB to UART, 1 * USB_native
  • - Power Supply: USB Type-C 5.0V(4.0V~5.25V)
  • - Button: Flash button and reset button
  • - Expansion interface: 1 * GPIO, 1 * I2C
  • - MicroSD: Yes
  • - Arduino support: Yes
  • - Operation temperature: -40℃ to +85℃
