1.44 Inch Colorful TFT Module ST7735

$6.20
Availability: In stock
SKU
MD1447789
  • Buy 21 for $4.70 each and save 24%

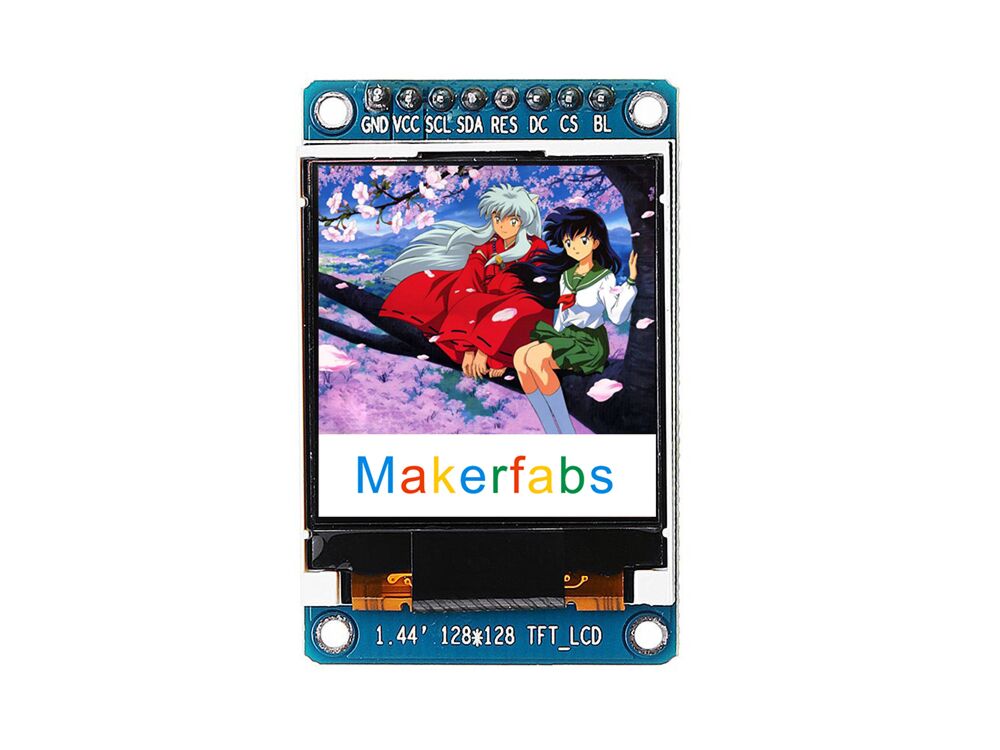

This is a 1.44″ IPS LCD full-color display with a high resolution of 128 x 128 pixels and a wide viewing angle ±80°. It is driven by ST7735, with SPI interface.

Features:

  • Display Size: 1.44 inch
  • Material: HD TFT LCD
  • Resolution: 128*128 Display
  • Control Chip: ST7735
  • Display Area: 25.5x26.5mm
  • Physical Size: 30.0x46.5mm
  • Interface Type: SPI interface
  • Number of Pins: 8PIN
  • Working Voltage: 3-5.5V
  • Viewing Direction: 12 o'clock
  • Working Temperature: -20°C~70°C
  • Interface:

  • GND – Power ground
  • VCC – Power 3-5.5V input
  • SCL – SPI clock line
  • SDA – SPI data line
  • RES – Reset
  • DC – Data/command selection foot
  • CS – Chip select signal, low level active
  • BLK – Backlight control, the default can be left floating, low level to turn off the backlight
  • Download:

  • Arduino Usage
  • Introduction on Youtube
  • 1.44 inch colorful TFT Module ST7735 Schematic
  • ST7735 Datasheet
