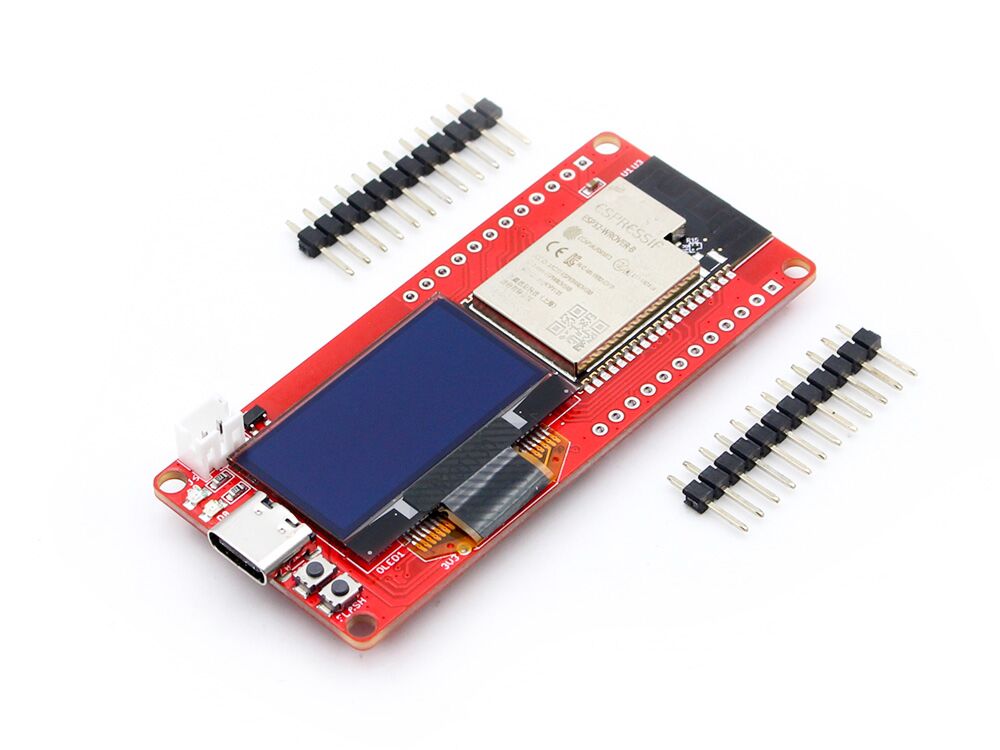

MaUWB_DW3000 with STM32 AT Command

Note： This product has been updated to the latest ESP32S3 version, which features Bluetooth 5(LE) and stronger processing ability. Please order the new version at:https://www.makerfabs.com/mauwb-esp32s3-uwb-module.html

The latest UWB module that solves multiple anchors& tags mutual conflicts, support max 8 Anchors + 64 tags in application, to create a multi-anchor multi-tag positioning system,and supports antenna delay settings for tags and anchors.

Ultra-wideband (UWB) is a short-range, wireless communication protocol that operates through radio waves, enables secure reliable ranging and precision sensing, creating a new dimension of spatial context for wireless devices. In field application, the most problem of UWB is the signal mutual conflicts/interference, that when there multiple anchor& tags exists.

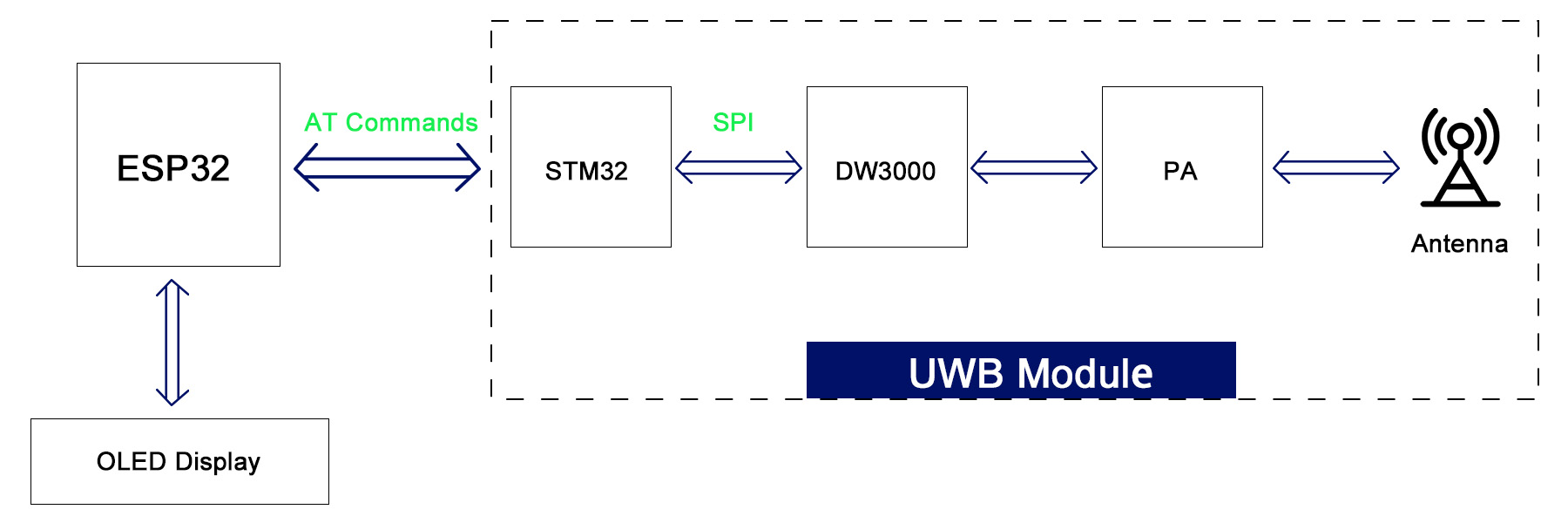

Makerfabs latest MaUWB module solves this problem by integrating an STM32 controller running default firmware, which is carefully designed& adjusted and have been proved reliable in files applications, to deal with the DW3000 multiplexing, that the ESP32 controller can get the UWB arranging result simple by AT commands.

Makerfabs MaUWB make it possible to use UWB tech with any controller easily, with simple AT commands, to create a multi-anchor multi-tag positioning system.

Features:

• 1. DW3000 with PA, max range 500M
• 2. recision 0.5M(in range 100m)
• 3. Support 8 anchors+ 64 Tags application

Files& Usage Guide：

• Github
• Wiki
• UWB positioning development with python
