MaTouch ESP32-S3 Parallel TFT with Touch 5”

$39.80
The ESP32 S3 has Wifi& Bluetooth 5.0, 8M PSRAM ESP32 S3 are used in this product, with 16M flash, to make it competent for more advanced applications.
Availability: In stock
SKU
E32S3RGB5

The ESP32 S3 5" IPS display is the ideal display and controller for IoT applications. Its high lightness IPS display with a resolution of 800*480 makes the display effect beautiful, together with feature an IPS screen with detailed and vibrant colours and 5-point capacitive touch, making them particularly suitable for applications such as home automation. The built-in SD card slot allows easy recording and playback of data files, extending the range of possible applications. In addition, the 2 on-board Mabee/Grove interfaces allow users to quickly connect to a variety of sensors for instant creation of personalised prototyping projects.

The ESP32 S3 has Wifi& Bluetooth 5.0, 8M PSRAM ESP32 S3 are used in this product, with 16M flash, to make it competent for more advanced applications.

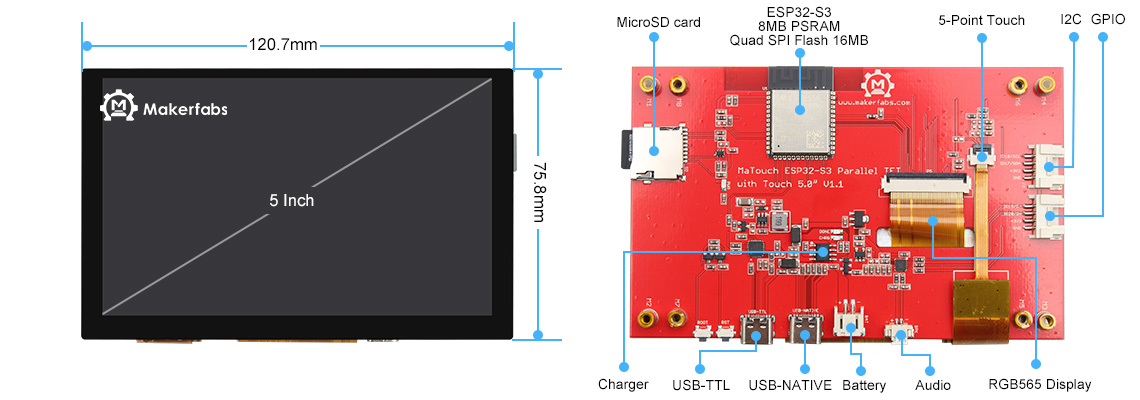

Spec:

  • Controller: ESP32-S3-WROOM-1, PCB Antenna, 16MB Flash, 8MB PSRAM, ESP32-S3-WROOM-1-N16R8
  • Wireless: Wifi& Bluetooth 5.0
  • LCD: 5 inch High Lightness IPS
  • Resolution: 800*480
  • LCD interface: RGB 24bit
  • Touch Panel: 5 Points Touch, Capacitive
  • Touch Panel Driver: GT911
  • USB: Dual USB Type-C(one for USB-to-UART and one for native USB)
  • USB to UART Chip: CP2104
  • Power Supply: USB Type-C 5.0V(4.0V~5.25V)
  • Button: Flash button and reset button
  • Mabee interface: 1I2C;1GPIO
  • MicroSD: Yes
  • Arduino support: yes
  • Type-C Power Delivery: Not Supported
  • Operation temperature: -40℃ to +85℃

Reference:
